Unraveling the clonal hierarchy of somatic genomic aberrations

An Erratum to this article was published on 02 May 2017


Defining the chronology of molecular alterations may identify milestones in carcinogenesis. To unravel the temporal evolution of aberrations from clinical tumors, we developed CLONET, which upon estimation of tumor admixture and ploidy infers the clonal hierarchy of genomic aberrations. Comparative analysis across 100 sequenced genomes from prostate, melanoma, and lung cancers established diverse evolutionary hierarchies, demonstrating the early disruption of tumor-specific pathways. The analyses highlight the diversity of clonal evolution within and across tumor types that might be informative for risk stratification and patient selection for targeted therapies. CLONET addresses heterogeneous clinical samples seen in the setting of precision medicine.


Cancer arises from initiating cells (clones) that undergo intense evolutionary selection during disease progression and can be widely altered during treatment. The tumor cell evolutionary process may lead to subclonal divergence resulting in genetic and molecular heterogeneity. Computational approaches to establish maps of cancer evolution might inform clinical risk stratification and treatment strategies. Analysis strategies have been developed to address tumor DNA purity and cancer cell ploidy, but there remains a gap for the analysis of minimally aberrant or highly heterogeneous tumors.

Over the past years, several methods have been developed to quantify DNA admixture and ploidy from high density single-nucleotide polymorphism (SNP) array data [1]-[4] that utilize the relative abundance of specific allele signal (B allele frequency (BAF)) and the tumor over normal signal ratio (referred to as Log R) to measure the complexity of the underlying cellular population. Global optimization methods are applied to find the configuration of DNA admixture and ploidy that better account for the observed values of BAF and Log R. More recent tools [5]-[9] exploit the rich statistical properties of massively parallel sequencing to provide base-pair data resolution. Using germline heterozygous SNP loci (hereafter called informative SNPs), tumor purity and ploidy are estimated analyzing allelic fraction (AF) values (that is, the fraction of sequencing reads supporting the reference base) in a way resembling the use of BAF data in SNP arrays. Subclonal alterations will appear as outliers from the computed admixture and ploidy.

All these tools apply a global approach (that is, the AF (or BAF) values are all thrown into an inference algorithm that eventually returns DNA purity and ploidy). Global methods are well-suited for tumor samples with fairly homogenous genomic aberrations (high ratio of clonal versus subclonal lesions). In the clinical setting, where tumor samples might exhibit heterogeneity due to progression or subsequent to multiple lines of treatment, and for tumor types that undergo structural changes such as `chromoplexy’ events in prostate cancer (that is, abundant DNA rearrangements and deletions that arise in a highly interdependent manner) [10], these approaches may prove suboptimal as they ignore the genomic diversity.

These observations prompted us to develop a second generation tool based on local (in contrast to global) optimization where estimates of purity and ploidy are derived from few clonal events (Figure 1). We noted that the AF values of the informative SNPs within a somatic deletion result from the composition of signal from three cell populations: (i) non-tumor cells (contributing to the DNA admixture); (ii) tumor cells without the deletion; and (iii) tumor cells harboring the deletion (that is, a subclonal deletion given (ii) and (iii)). By modeling the probability distribution of the observed AFs, we compute a local estimate of the DNA admixture (1 - DNA purity) that accounts for both normal cell admixture and subclonal tumor cell population. After estimating local admixture values for all deletions across the genome, only selected lesions (from the most clonal side of the spectrum) contribute to the computation of the tumor sample global admixture. In the presence of homogenously aberrant genomes (Figure 1, top), global and local approaches result in similar estimates; for heterogeneous genomes (Figure 1, bottom), the local approach focused on selected lesions (blue arrows in Figure 1) leads to more realistic estimates. Here, we present the full implementation of CLONET (CLONality Estimate in Tumors) and study the clonality of somatic aberrations from whole genome sequencing (WGS) data across 3 tumor types comprising 55 individuals with primary prostate cancer [10], 24 metastatic melanomas [11], and 21 lung adenocarcinomas [12].

Figure 1
figure 1

Local versus global approaches to clonality analysis. The local optimization approach to compute global admixture (1 - purity) and ploidy is schematically explained and compared with a global optimization approach on two cancer samples with different levels of lesion heterogeneity. Copy number neutral regions show nominal AF of 0.5; AFs of mono-allelic deletions depend on lesion clonality and on global admixture. Arrows point to lesions used by global (red) or local (blue) approach. For sample 1 showing a profile compatible with clonal cell population (that is, each lesion demonstrates approximately the same AF value), the two approaches return equivalent estimates. For sample 2 (high heterogeneity) the local approach focuses on lesions with the highest level of clonality (blue arrows), resulting in a realistic estimate of the sample admixture.


Clonality assessment of aberrations from sequencing reads

We reasoned that the reads mapped into a genomic window can be partitioned in two sets: one set includes reads that equally represent parental chromosomes (copy number neutral reads); and the other set contains reads from only one parent chromosome (active reads). There are four main steps that, starting from neutral read counts, allow inference of clonality of any genomic window. First, we estimate the percentage of neutral reads within a genomic segment independently of its Log R value. Second, we use the Log R value to relate the neutral reads percentage with a local estimate of DNA admixture. Local estimates are then aggregated to estimate global admixture and clonality of somatic copy number aberrations (SCNAs). Third, aneuploidy genomes are identified and the analysis corrected accordingly. Finally, we extend the analysis to point mutations (PMs) and structural rearrangements (REARRs) in a coherent manner. In the following we will briefly detail each step.

For each genomic segment Seg, the expected AF of the informative SNP in Seg has bimodal distribution that relates to the composition of the DNA sample; the distance between the two modes is proportional to the percentage of neutral reads β (see Materials and methods). The expected distribution of the AF (Figure 2A) varies accordingly with β and Nref, which is the proportion of reference base reads in the allele represented by active reads. For each input segment Seg, optimization based on swarm intelligence [13] finds a β that minimizes the difference between the expected and the observed AF distribution (see Materials and methods). Then, the Log R of Seg allows computing a local estimate of the admixture. If Seg defines a mono-allelic deletion, β corresponds to the percentage of reads deriving from cells that do not harbor the deletion (see Materials and methods) and relates to a local estimate of the percentage of admixed cells, Adm.local, as (proof in Additional file 1):

Adm.local= β 2 β β
Figure 2
figure 2

CLONET key elements. (A) For each genomic segment, the AF distribution of informative SNPs follows a bimodal distribution that depends on the proportion of reference bases in the active allele (Nref) and on the percentage of neutral reads (β) (left panel; 60X coverage data used For high values of β the distribution becomes unimodal as a function of the coverage (right panel; Nref = 0.5). (B) For a genomic segment, the relationship between Adm.local and β is a hyperbola whose parameter values are governed by the segment copy number (CN). (C) Genomic segment representation in the β versus Log R space depends on the combination of the copy number of the parental alleles. Aneuploidy causes a shift while results in shrinkage of the allowed subspaces. Violet dots indicate genomic segments with equal number of parental alleles (that is, 1/1, 2/2, 3/3,…). (D) The sketch illustrates the alternative allele proportion (AP) of a mono-allelic REARR defined by the genomic coordinates bp1 and bp2 The aberrant allele is represented by two types of reads: reads with abnormal insert size (gray) and reads that span both sides of a breakpoint (orange for bp1 and red for bp2). The non-aberrant allele exhibits two matching classes: paired-end crossing reads where one end maps entirely to one side and the other entirely to the other side correspond to aberrant gray reads. Single end reads that span the breakpoint (overlapping) are a complementary match to aberrant orange and red reads. The clonality is proportional to the proportion of aberrant reads around the breakpoint junction. Ad hoc quality filters are applied for removing sequencing artifacts around REARRs (right inset). First, the non-aberrant allele coverage is the minimum between the coverage in bp1 and bp2. Then, a REARR is adequate for analysis if the AP is statistically indistinguishable if we consider overlapping or crossing reads (proportion test with limit value 0.1).

Reasoning that the signal from normal cells is uniform along the genome, local admixture values are then clustered, and the lowest median value among all the clusters determines the global admixture ( of the sample. Reasoning that the more the local admixture value differs from the global one the more Seg is subclonal, the clonality of Seg, Cl Seg , is computed as the percentage of tumor cells in a sample harboring Seg. If Seg is a gain, Equation 1 extends by rescaling the percentage of neutral reads β to recover the percentage of reads sequenced from cells that does not harbor the gain of Seg (Figure 2B; Materials and methods). Bi-allelic deletions are treated separately; if the deletion is clonal, its AF distribution has binomial distribution (β = 1) and represents only DNA admixture, but in case of subclonality, the value of β is proportional to the percentage of tumor cells that do not harbor the deletion (Additional file 2).

Aneuploidy causes a shift in the Log R versus β space of a sample (Figure 2C). In any genomic segment with an empty active reads set (neutral copy number segment) each allele has the same number of copies, and its β is 1 by definition. The ploidy of a sample is the shift in the Log R values of the neutral segment that best accounts for the observed Log R values. Log R data are then corrected for both ploidy and to achieve better estimates of the segment copy number (Figure S2A-C in Additional file 3).

Clonality estimates of PMs build on the assumption that reads supporting the alternative allele are representative of the amount of tumor DNA harboring the mutation. In particular, the proportion of reads supporting the alternative allele (AP) of a 100% pure and clonal hemizygous PM has symmetric binomial distribution. The value represents the percentage of reads from admixed cells that have to be ignored to compute the correct value of the AP. A PM is subclonal when its corrected AP has a low probability to be clonal (type I error < 0.05). The same principle applies to REARRs by properly selecting reads from rearranged tumor cells. The total number of reads that span both sides of a breakpoint defining a REARR [14] is a proxy of the number of cells harboring the rearrangement (Figure 2D). After removing reads representative of global admixture, the difference between the expected and the observed proportion of reads supporting the alternative allele is proportional to the subclonality of the considered REARR (Additional file 1).

Inferring the order of mutations in a tumor sample

The assessment of the clonality of each somatic aberration enables the deconvolution of the sequence of oncogenic events that occur during tumor initiation or progression. Assuming that clonal alterations originated prior to subclonal alterations within the same tumor, we examined pairs of genes that are aberrant in the same sample and across multiple tumors to determine the directionality of the clonal-subclonal hierarchy. However, different error sources may introduce a bias into the distribution of the AF that could lead to inaccurate clonality estimates. To minimize the number of false positives (clonal aberrations called subclonal), we compute the estimation uncertainty around β (Figure 3A) and propagate it to clonality values (see Materials and methods). Error management enables robust comparison of aberration clonality across different tumor sample data. We then apply the following algorithm to determine the progression on somatic aberrations: if a clonal aberration A1 and a subclonal aberration A2 co-occur within the same sample S, we assume that A1 has been acquired before A2 in S and we say that A1 precedes A2 in S. To then derive the rule that links aberration A1 and A2, the same dependency has to be found consistently across many samples. This strategy can produce an evolution path draft (that is, a pictorial representation of the potential temporal relations among somatic aberrations observed in a sample set (Figure 3B)). In the presence of adequate sample size and frequencies of co-occurring aberrations, the statistical significance of the relation between A1 and A2 can be assessed by testing the null hypothesis that two aberrations are independent (that is, A1 precedes A2 or A2 precedes A1 are equally likely) and consider a binomial distribution B(n,p) with number of trials n equals the number of samples where A1 is clonal and A2 is subclonal or vice versa, and success probability P = 0.5 (binomial test with 5% significance would require a minimum of 6 out of 6 samples where A1 precedes A2).

Figure 3
figure 3

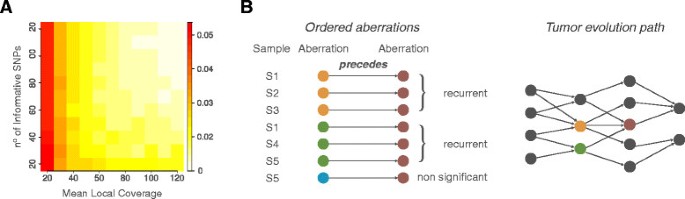

Building the evolution path. (A) For each genomic segment, the uncertainty value around β is a function of the number of informative SNPs and of the mean local coverage. (B) Tumor evolution paths are built from ordered aberrations consistently observed in multiple samples. On the left, arrows indicate ordered aberrations based on clonality estimates within the same tumor; three distinct aberrations (orange, green, and blue) precede a fourth one (red). Ordered aberrations that find statistical support (as recurrent in multiple samples) contribute to the tumor evolution path (right).

In silico and in situexperimental validation

To assess if the coverage depth typical of large scale sequencing experiments (around or below 100X for WGS) has an effect on clonality estimates of SCNAs or PMs, we first queried MiSeq ultra-deep sequencing (approximately 65,000X) data generated from a set of 18 aberrant genes from 7 tumor samples analyzed in this study and observed excellent agreement in downstream clonality calls for deletions (Cochran test, P = 1) [10]. Notably, CLONET did not assign clonality values to aberrations in which MiSeq does not confirm WGS-based AP values. Next, we focused on a set of study PMs and assessed high correlation of AP values between WGS and MiSeq (mean coverage >143,000X) data (Figure S3A in Additional file 4; Table S1 in Additional file 5) (Pearson’s r = 0.73, P < 10e-3), suggesting altogether that the study coverage does not significantly impact the ability to assess aberration clonality.

In order to validate the clonality status of more complex structural genomic aberrations, specifically gene rearrangements and homozygous deletions, we turned to in situ tests on human tumor samples. As proof of principle, we first demonstrated the ability to assess rearrangement clonality focusing on well-characterized prostate-specific clonal REARRs involving ERG and TMPRSS2[15]. Separate clonality analyses of both TMPRSS2-ERG REARRs and of the accompanying 3 Mb interstitial deletion [16] in two prostate tumors (P03-2345 and PR-09-146) demonstrated perfect agreement (Figure 4A; Figure S3B in Additional file 4). Next, we validated by fluoresce in situ hybridization (FISH) analyses two subclonal REARR calls, involving a genomic area 86 kb upstream of MSR1 (8p22) in patient PR-2525 (Figure 4B) and SPRY2 (13q31.1) in patient PR-3042 (Figure S4A in Additional file 6).

Figure 4
figure 4

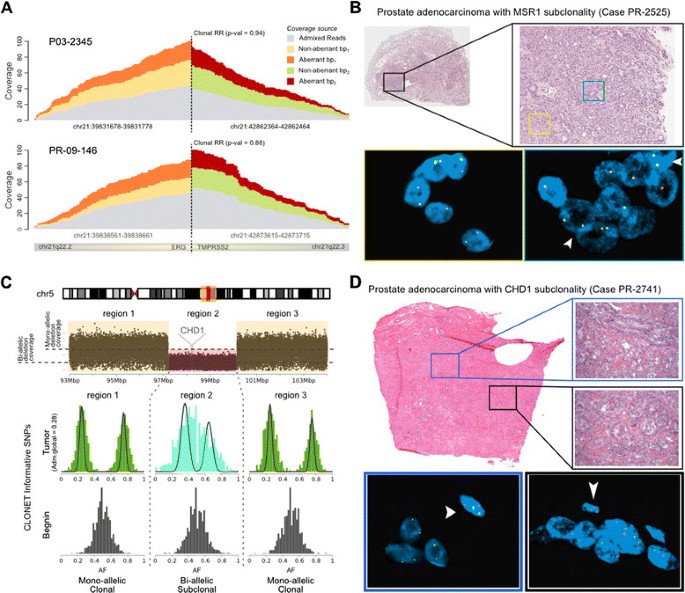

In silico and in situ validation. (A) Coverage of overlapping aberrant and non-aberrant reads at the REARR breakpoints of clonal TMPRSS2-ERG REARRs in two prostate adenocarcinomas (cases P03-2345 and PR-09-146). Upon removal of admixed DNA reads (gray), local coverage of aberrant and non-aberrant reads match (AP close to 0.5), supporting the clonality of the rearrangement. (B) Representative case (PR-2525) with MSR1 subclonality REARR, validation by FISH. Low power view of prostate adenocarcinoma, Gleason score 3 + 4 = 7 in a prostatectomy specimen (black box). Some areas do not have deletion of MSR1 as demonstrated by the presence of two yellow signals in tumor nuclei (yellow box). Other areas show hemizygous deletion of MSR1 as demonstrated by the presence of only one yellow signal in tumor nuclei (blue box). Occasional nuclei with wild-type MSR1 (arrow heads) are identified in this area. Nuclei with MSR1 hemizygous deletion comprised approximately 30% of assessed tumor areas. (C) A homozygous subclonal deletion including CHD1 is inserted within a large hemizygous clonal deletion (case PR-2741). Cancer AF highlights the different proportion of aberrant reads in the two cases. (D) Representative case with CHD1 subclonality (case PR-2741), validation by FISH. Low power view of prostate adenocarcinoma, Gleason score 4 + 3 = 7 in a prostatectomy specimen. Some areas have homozygous deletion of CHD1 as demonstrated by the presence of only two green signals (reference probe) in tumor nuclei (bottom left blue box). In contrast, other areas show hemizygous deletion of CHD1 as demonstrated by the presence of one red (CHD1) and two green signals (reference probe) in tumor nuclei (bottom right black box). Note the presence of two red and two green signals (wild-type CHD1) in adjacent stromal cells, used as internal control (arrow heads).

Finally, we validated in situ a homozygous deletion along 5q spanning CHD1 that was predicted to be subclonal. Figure 4C shows the sequencing data information utilized by CLONET to infer the subclonal bi-allelic deletion in patient sample PR-2741 as confirmed by FISH (Figure 4D). The prediction highlights a relatively small subclonal bi-allelic deletion (Figure 4C, region 2) within a larger clonal mono-allelic deletion (Figure 4C, regions 1 and 3), suggesting that selective evolutionary pressure is acting on the genomic region. Patient PR-2525 demonstrated a similar subclonality pattern at the CHD1 locus (Figure S4B in Additional file 6).

Comparison of CLONET and ABSOLUTE

We compared predictions for prostate cancer and melanoma samples with calls reported in the original manuscripts [10],[11] (data for lung not publicly available) using a widely used computational method, ABSOLUTE [5], that implements a global estimation approach. Overall agreement was observed (Figure S5A, B in Additional file 7) in both datasets (Pearson’s r ≥ 0.8, P < 10e-5). Not surprisingly, CLONET allowed for larger fractions of admixture calls compared with ABSOLUTE (98% versus 74% in prostate and 92% versus 88% in melanoma) as the local approach better handles samples with low ratios of clonal to subclonal SCNAs. The average ratio across cases only handled by CLONET is 1.73 versus average ratios across cases handled by both of 5.72 and 6.88 for prostate and melanoma samples, respectively. We further tested CLONET performance on whole exome sequencing (WES) data using an independent cohort of 108 prostate samples [17] (Pearson’s r = 0.74, P < 10e-15; Figure S5C in Additional file 7).

In terms of ploidy assessment we noted significant differences in the melanoma dataset where CLONET tends to undercall polyploidy (Figure S5D in Additional file 7). Where our conservative approach might definitely introduce false negative calls, we identified cases where close inspection of allele-specific data is not necessarily compatible with ABSOLUTE original calls of polyploidy [11]; for example, ME049T (Figure S5E in Additional file 7), where the relative distances among Log R peaks are more compatible with a diploid genome.

Comparative analysis reveals different mechanisms of tumor deregulation

We analyzed a total of 17,645 losses, 4,753 gains, 7,728 PMs, and 1,504 REARRs (Figure S6A in Additional file 8) and a panel of more than 23,000 genes from the RefSeq database [18]. Figure 5A summarizes the distribution of clonality across tumor types and aberrations. We compared the mean number of events classified as clonal or subclonal by means of the proportion test with Benjamini-Hochberg false discovery rate (FDR) correction (Figure 5B; Table S2 in Additional file 5). We observed that deletions are more heterogeneous than gains in prostate and lung cancer (corrected P-values <10e-6 and <10e-21, respectively) and, interestingly, melanoma samples showed the opposite behavior (corrected P-value <10e-21). Moreover, when comparing the proportion of clonal/subclonal losses and gains across tumor types, the prostate and lung samples are statistically indistinguishable (corrected P-values of 0.49 and 0.365, respectively). Overall, this suggests that temporally distinct mechanisms lead to loss and gain across the three tumor types. In terms of PMs, prostate cancer exhibits more subclonal events than melanoma, suggesting a more central role of PMs in melanoma oncogenesis compared with prostate cancer, as confirmed on an independent cohort from The Cancer Genome Atlas (TCGA) of 264 melanoma samples (Figure S6B in Additional file 8). However, aggregated values reflect only part of the story as great variability in the percentage of clonal events within a single combination of tumor and aberration is observed (Figure S6C in Additional file 8). We found no association between the patients’ clinical characteristics and exhibited clonal and subclonal range (Table S3 in Additional file 5).

Figure 5
figure 5

Clonality comparison across somatic aberrations and tumor types. (A) Summary of clonality: clonality inference of genomic events. Pie charts indicate the mean numbers of events classified as clonal (green) or subclonal (blue) across samples. (B) Statistics of clonality: within tumor type and across tumor type comparisons of the proportion of the mean number of clonal/subclonal genomic events. Radar charts report the statistics of the comparisons (P-values of the proportion test with Benjamini-Hochberg FDR correction). Dark gray continuous line represents 99% confidence level.

Having assessed the variability in the clonality status of aberrations in individual patients, we then evaluated how it distributes along the whole genome as represented in clonality circos plots (Figure 6A). We can appreciate commonality among the three tumor types in some specific genomic regions. Genes on 8p are found clonally deleted in 96%, 100%, and 100% of the prostate, melanoma, and lung samples, respectively. They include the prostate cancer suppressor NXK3-1[19], the gene CSMD1, which is recurrently deleted in melanoma [11], and the phosphatase DUSP4, which is involved in negative feedback control of EGFR signaling in lung adenocarcinoma [20].

Figure 6
figure 6

Clonality distribution along tumor genomes. (A) For each tumor type the circos plot represents the distribution of clonality along the genome. Each circos plot has five data tracks. The two outermost tracks report the proportion of clonal/subclonal losses and gains, respectively. Then, PM APs and the associated clonality status are depicted in the middle track. Finally, the inner tracks show the clonality status of intra- and inter-chromosomal REARRs. (B) Comparison of the clonality status of losses along chromosome 10q across tumor types. For each tumor type, the clonality status of losses was sampled every 100 kb and the proportion of clonal/subclonal losses reported.

Then, we investigated whether clonality analysis can highlight tumor-specific mechanisms of deregulation. Our comparative analysis shows that although PTEN deletion is involved in many cancer types, the underlying timing of alteration may be different among tumor types (Figure 6B), and may point to differential roles for pathway inactivation. Specifically, the focal and subclonal deletion in the prostate samples suggests that evolutionary pressure is acting in this region later in the natural history of the disease and may promote cancer progression at a later stage of cancer evolution. In contrast, the broad and clonal deletion of a large part of chromosome 10q found in melanoma indicates that PTEN is homogenously lost in metastatic melanoma. In lung adenocarcinomas loss of PTEN expression in EGFR-mutant cells correlates with increased drug resistance [21], but the rarity of the deletion observed entails the hypothesis that loss of expression is not due to a genomic alteration of PTEN.

Finally, our tool can also identify tumor lineage-specific subclonality. MUC4, encoding a protein acting to upregulate cell cycle inhibitor p27 through ERBB2 phosphorylation [22] and mutated in melanoma [11], is subclonal in the majority of samples (7 out of 12, 58%) on a background mean subclonality rate of 14% (Figure 5A) (adjusted binomial test P-value <0.05); this is similar for MUC2 and PCMTD1. The SOX2 gene, which encodes a transcription factor relevant to lung development and has been identified as a lineage-survival oncogene in lung squamous cells carcinomas [23] and over-expressed in advanced tumors [24], is detected as a subclonal gain in one (case LUAD-AEIUF) of two amplified samples, with possible implications for prognosis and risk stratification.

Clonal hierarchy of genomic aberrations

We next analyzed the temporal evolution of driver aberrations [25],[26] to build evolution maps (Figure 7A) capitalizing on the information from multiple individuals’ samples in the absence of multiregion samples from the same individual [27]. Given the study sample size and the mutation frequencies, we built drafts of evolution maps by implementing the following rules. An arrow from aberration A1 to aberration A2 is drawn if (i) A1 and A2 co-occur in at least two samples, (ii) A1 preceded A2 in at least one sample, and (iii) A2 does not precede A1 in the considered dataset (Figure 7A).

Figure 7
figure 7

Observed tumor patterns. (A) Draft tumor evolution paths of putative driver aberrations based on recurrent patterns. Thicker arrows in the prostate path correspond to precedence relations that were confirmed in an independent cohort of 203 WES prostate samples. (B) Draft tumor evolution paths based on cancer pathways. Each node represents a set of genes (aka a pathway). For a pair of pathways P1 and P2, CLONET computes the number of dependencies from each gene in P1 to each gene in P2, d12, and the inverse, d21. If there is no dependency between P1 and P2, then it is expected that d12 and d21 are statistically comparable (that is, d12 is generated from a symmetric binomial distribution with d12 + d21 trials). If d12 > d21 and the P-values of the binomial test with Benjamini-Hochberg FDR correction is <0.01, then the arc is reported.

Extended analysis of the prostate tumors for which deletion evolution paths were provisionally characterized [10] confirmed the temporal relation between the deletion of PTEN and TMPRSS2-ERG rearrangements (both via deletions and insertions in patient P01-28) in a coherent analysis framework. In addition, the improved sensitivity of CLONET now identifies additional genes whose loss precedes the homozygous deletion of CHD1, namely NKX3-1, FOXO1, and RB1 (Figure 7A). To find support for the observed relations, we further analyzed 203 independent localized prostate cancer samples that underwent WES, including the Barbieri et al. dataset [17] and the interim TCGA prostate cancer cohort. We verified the vast majority of the relations depicted in Figure 7A (exceptions are BRCA2 with FOXO1 and RB1). It is worth mentioning that no contradictory relations were detected. In addition, in a set of patients treated with brachytherapy [28], we verified through FISH analysis that PTEN subclonal deletion is preferentially observed in the setting of ERG rearrangement in line with other recent studies [29].

By querying recently reported gene sets [30],[31] and high confidence driver genes [32], the melanoma sample analysis revealed that clonal gains over chromosome 8q, including the proto-oncogene MYC, precede a missense mutation of NF1, a negative regulator of RAS signaling [30], and that deletions on 6q spanning the pro-apoptotic factor BCLAF1 (Bcl2-associated factor 1) consistently precede missense mutations of NBPF10 (chromosome 1q21.1) and RANBP2 (chromosome 2q12.3).

Similarly, we considered 32 high confidence driver genes [32] in the lung adenocarcinoma set (Figure 7A). CLONET identified a path that stems from the clonal aberration of gene FBN2[33], either via deletion or missense mutation. FBN2 disruption precedes the subclonal deletion of genes along chromosome 9p, including significantly mutated known lung adenocarcinoma genes SMARCA4, KEAP1, and STK11[12]. Interestingly, two paths involving different aberration mechanisms appear to lead to 9p deletion: (i) a direct path when the FBN2 gene is deleted; and (ii) an indirect one through the loss of the 3p21.31-22.1 genomic region in the case of a missense mutation of FBN2.

In order to investigate common patterns of progression across tumor types, we interrogated a large set of putative cancer genes (N = 507; September 2013 version of COSMIC cancer gene census [34]) and applied pairwise intersections (three supporting samples across the two tumor types) of identified paths (Additional file 9). Despite the conservative approach and the overall limited number of samples, we observed that RB1 loss is consistently sequential to 6q losses in both melanomas and prostate cancers. Similarly, aberrations along 17q (TP53) are followed by NFKB2 loss, supporting additional oncogenic effects [35]. The same cluster of 17q gene aberrations precedes deletions along 12q24 in both prostate and lung samples. Last, we detected consistent subclonal deletions on 9q in both melanoma and lung samples following deletions on 15q and IRF4 gain. Notably, the path included a subclonal deletion of the tumor suppressor TSC1 (tuberous sclerosis 1) that may activate the mammalian target of rapamycin (mTOR) pathway and promote tumor development [36].

Finally, we explored the evolution of known cancer signaling pathways (Figure 7B); both common themes across tumor types and tissue-specific patterns emerged. Well-established, recurrently deregulated pathways were detected as early drivers, such as androgen signaling in prostate cancer, core mitogen-activated protein kinase (MAPK) pathway components (such as BRAF) in melanoma, and p53 and EGFR in lung cancer. Interestingly, although disruption of the same oncogenic pathways may be implicated across the three tumor types, the timing of dysregulation along the evolutionary paths can be independent.


We have developed a mathematical model that exploits the genetic background of each individual to characterize cancer cell heterogeneity within a tumor specimen and builds lesion hierarchies by learning from recurrent patterns across multiple patients. The approach relies on base level information from a range of next-generation sequencing data (WGS, WES and targeted sequencing) and utilizes a local optimization approach and confidence propagation steps to enable the processing of complex subclonal patterns typical of patients with advanced tumors who may have undergone multiple treatment cycles.

The local optimization approach ensures accurate tumor purity assessment across challenging samples. Our group recently implemented CLONET in precision medicine WES reports to assess adequacy of biopsy samples, highly relevant in a regulatory compliant environment. Direct assessment of CLONET performance on WES versus WGS data from 15 samples (data from [10],[17]) showed excellent agreement for (Figure S8A in Additional file 10) and clonality estimates (Figure S8B in Additional file 10) where 97.6% of genes annotated as subclonal in WES are also subclonal in WGS. This approach can also be utilized to assess temporal evolution from serial samples from one patient, as observed with patient 7520, in which both his primary untreated prostate cancer and metastatic treatment-resistant tumor (biopsied three years later) were profiled. Upon correction for ploidy and global admixture, CLONET identified the gene AURKA as copy number neutral in the primary sample but found a gain of two copies in the late metastatic sample (Additional file 11). Amplification of AURKA has been described in treatment-resistant metastatic prostate cancer [29],[37], and inhibitors of AURKA are currently in clinical trials. In addition, by exploiting the local optimization approach, we were successful in following tumor dynamics across cell-free DNA samples (liquid biopsies) from castration-resistant prostate cancer patients upon deep targeted sequencing and to monitor clonal expansion and contraction of key somatic aberration from low tumor content DNA samples [38].

Here, we report the results from three common solid tumor types characterized by diverse histology and clinical course and for which we were able to detect patterns and dynamics of subclonal evolution that support the relevance of the approach. Globally, we observed great variability across and within tumor types. Targeted analyses revealed both commonalities and clear differences (Figure 6A). Notably, we identified the partial loss of chromosome 8p as a common early event in the three tumors, while the focused analysis on the long arm of chromosome 10 suggested different mechanisms of PTEN deregulation and participation in tumorigenesis. Finally, specific examples of subclonality, such as MUC4 PMs in melanoma and SOX2 gains in lung, have been identified. Understanding patterns of tumor evolution can aid in the rational development of more effective and early therapeutic approaches to directly target clonal events that are driving tumorigenesis, especially as multiple potentially actionable alterations are often identified within one tumor even at diagnosis.

It is important to note that to properly construct comprehensive tumor evolution maps, thousands of genomes are required to reach adequate statistical power when considering the range of frequencies of co-occurring aberrations. As sequencing data for multiple tumor samples and tumor types becomes accessible to the community, maps will be drafted and completed over multiple iterations. In turn, this will soon allow assigning an evolution time stamp to each new clinically profiled sample based on where the tumor genome fits into the evolution maps. Establishing a 'timeline' of cancer progression is critical for biomarkers development in the precision medicine era, allowing clinicians to more accurately gauge prognosis by adding a molecular measure of progression to standard staging and grading systems, which do not associate with molecular heterogeneity of samples (Table S3 in Additional file 5). Such an approach may allow improved clinical decision-making in a variety of cancer types, guiding the choice of management strategies and level of aggressive therapy based on how far the tumor has progressed at the genomic level.

In summary, we present a robust method that exploits next-generation sequencing data to classify somatic lesions based on their clonality within the tumor cell population. The utility of CLONET is related to transitioning next-generation sequencing efforts from the static evaluation of untreated tumor samples to the clinical arena of precision medicine where patients will be followed along a continuum of treatment modalities and a targeted therapy regimen is based on the understanding of driver mutations.


Distinguishing gatekeeper or driver mutations from passenger mutations is a high priority for understanding disease progression. Knowledge of the chronology of molecular alterations can provide important insights into defining the most clinically relevant mutations that characterize important milestones in cancer. Genome sequencing of cancer samples taken during the course of precision medicine might demonstrate a wider range of genomic heterogeneity than previously observed in international genome sequencing studies. These clinical samples demonstrate more heterogeneity and admixture of both tumor and non-tumor components. To aid in unraveling the critical temporal evolution of somatic aberrations in challenging clinical tumors, we developed CLONET, a computation tool that requires only few clonal events to precisely estimate tumor purity and ploidy and then nominates the hierarchy of genomic aberrations. We demonstrate that CLONET can determine the clonality of different types of somatic aberrations, including SCNAs, PMs, and REARRs, using either WGS or WES datasets. We anticipate that with the emergence of larger genomic datasets, CLONET could help map out the evolution of molecular alterations.

Materials and methods

CLONET pipeline

A schematic view of the CLONET pipeline is shown in Figure S10A in Additional file 12. For this study input data were obtained as follows. Read counts of informative SNPs were extracted from BAM files using an in-house procedure, SCNAs were detected using SegSeq [39] from tumor and normal sequencing-based data, PM coordinates were as in original corresponding manuscripts, and REARRs were identified by means of dRanger and Breakpointer [14]. Finally, to avoid germline background effects, we filtered out genes (approximately 4,000) that intersect significant (size greater than 2 kb) known germline copy number variants [40].

Fluorescence in situhybridization validation of CLONET

To assess genomic deletion, disruptive translocations or polyploidy we used locus-specific dual-color FISH assays following a previously described approach [41],[42]. To assess subclonality, at least 200 nuclei per area were evaluated using a fluorescence microscope (Olympus BX51; Olympus Optical, Tokyo, Japan). The probes used for FISH assays were: SPRY2, 5′ RP11-51 N22 to 3′ RP11-478 F4; MSR1, 5′ RP11-6O24 to 3′ RP11-794E24; ERG, 5′ BAC RP11-372O17 to 3′ BAC RP11-24A11; reference probe on 10q25, BAC RP11-431P18).

CLONET on exome and targeted sequencing data

The local approach implemented in CLONET enables the analysis of samples with few SCNAs provided that informative SNP read counts and Log R values are available. As with WGS data, individual specific informative SNPs can be identified from matched normal DNA samples. Appropriate Log R values for exome genomic segments or for each targeted area can be obtained with platform-specific strategies and provided to CLONET as input. Specifically, in the case of exome data, array-based segmented data or SCNA segments directly inferred from exome data with recent well-performing tools [43] can be utilized. CLONET combines segment input with exome-derived read counts to estimate purity and ploidy and then nominate subclonal aberrations based on sequencing data. In the case of targeted sequencing data, copy number calls derived using custom control regions and very high coverage (>1,000X) [38] allowed for CLONET-based clonality estimation even in the case of low tumor content (<10%).

Expected distribution of the allelic fraction of a genomic segment

Consider a genomic segment that spans a set of informative SNPs for the individual of interest. For any such SNP with coverage cov, the total number of reads r supporting the reference base (reference reads) is the sum of the neutral reads (rn) and the active reads (ra) supporting the reference base. We define β as the ratio between neutral reads and the total number of reads spanning the SNP of interest. The probability of having k reference reads is then defined as the convolution of the probability of observing β*k neutral reads and (1 - β)*k active reads, that is:

P r = k , 0 β k β cov =Conv P r n = β * k , P r a = 1 β β * k

We assume that P(r n = β*k) follows a binomial distribution with number of trials equal to β*cov and probability of success equal to ps (that is, the probability to observe a reference read). Note that ps may deviate from 0.5 due to read-mapping biases [44]. All the active reads either support the reference base or the alternative base as only one allele is represented by definition of active reads. We define N ref as the proportion of informative SNPs within the aberration that carry the SNP reference base in the allele represented by active reads (active allele). Then, the distribution P(r a = (1 ββ)*k) follows a categorical distribution with values equal to N ref if r a = (1 ββ)*k and equal to (1 - N ref ) if r a = 0. Equation 2 can be written in a closed form as the sum of two binomial distributions (proof in Additional file 1):

P r = k | cov , β , N ref , ps = 1 β N ref *B k | β * cov , ps + N ref *B k β 1 β β * cov | β * cov , ps

where B(m|n,p) is the probability mass function of a binomial distribution, that is, the probability of m successes in n trials with success probability P.

Estimated proportion of neutral reads for a genomic segment

The unknown values β and N ref of Equation 3 can be inferred from the sequencing coverage at informative SNPs within the considered segment. In particular, given a segment Seg and a set I of informative SNPs within Seg, each informative SNP in I is a sample from the distribution of Equation 3. Optimization can be used to determine the values of β and N ref for each segment. Given a random pair (β, N ref ), the Kolmogorov-Smirnov nonparametric goodness-of-fit test for discrete null distribution [45] computes the likelihood that the informative SNPs in I are a sample from P(r = k|cβN ref ps). Next, a particle swarm optimization method [13] finds a candidate pair β ^ , N ^ ref that best represents the distribution of the allelic fraction of the SNPs in I.

From neutral reads to non-aberrant reads

Consider a genomic segment Seg. If the Log R value of Seg supports a SCNA C, we define as aberrant those reads that cover Seg and are sequenced from cells harboring C. If Seg is a candidate somatic mono-allelic deletion, the percentage of neutral reads β corresponds to the percentage of reads that cover Seg and are sequenced from cells harboring both alleles, that is, neutral and non-aberrant reads correspond. If the Log R value of Seg supports a gain with integer copy number cn > 2, we have to re-scale β to obtain the percentage of sequenced cells that have copy number cn (that is, the percentage of non-aberrant reads). For the sake of simplicity, we reason in terms of at most one copy difference between alleles. If cn is odd, the number of neutral reads is the sum of the neutral reads from admixed cells plus the neutral reads of the gain (Figure S10B in Additional file 12). The percentage β cn of reads from cells with copy number cn is computed from the percentage of neutral reads β by removing neutral reads due to the gain, that is:

β cn =1βc n G * 1 β β

If cn is even and at most one copy difference between alleles is allowed, then β is close to one, as both alleles are equally represented. This reasoning applies to any arbitrary combinations of the number of alleles (Figure S10C in Additional file 12).

From aberrant reads to aberrant cells

Given a somatic mono-allelic deletion M, the local admixture Adm.local is defined as the proportion of cells not harboring M (non-aberrant cells) over the total number of cells. Let a define the total number of reads supporting the alternative allele (alternative reads), as the sum of neutral reads (an) and active reads (aa) supporting the alternative base. For any informative SNP within M, the local admixture at M results:

Adm.loca l M = r n + a n 2 r n + a n 2 + r a + a a

and the proportion of non-aberrant reads covering M is:

β M = r n + a n r n + a n + r a + a a

By combining Equations 5 and 6, we can prove Equation 1. Additional file 1 reports a full proof of a generalized version of Equation 1 that accounts for any positive copy number.

Uncertainty assessment and its propagation to clonality estimates

Different error sources introduce a bias into the distribution of the allelic fraction that may lead to inaccurate estimates of β. To optimize sensitivity and specificity, we compute the estimation uncertainty β around β and we provide a sound way to propagate β to clonality values. The value of β varies based upon the depth of sequence mean coverage (mean.cov) and the number of available informative SNPs ( across the segment of interest in the sample considered. The mean.cov controls the ability to discern the two modes of the AF distribution: the inset of Figure 2A shows that the higher β is, the more coverage is needed. We evaluated the uncertainty in β estimates as a function of these parameters by randomly generating 50 samples with given mean.cov,, and β and averaging the difference between the expected and computed β for a given coverage and number of SNPs. Accordingly, we generated a look-up uncertainty table for each combination of mean.cov and (Figure 3A).

The procedure to infer the value of β of a segment is independent of its Log R value. Interestingly, if we plot the Log R of a segment versus its value of β, segments aggregate into clusters, where each cluster corresponds to a specific copy number and to a definite clonality status (Figure S10C in Additional file 12). If we restrict our attention to putative somatic mono-allelic deletions, the cluster B min with the lowest median value of β would likely represent 100% clonal deletions. CLONET relies on an uncertainty table (Figure 3A) to characterize B min . We define B as the set of β values of all the putative somatic mono-allelic deletions and err(β) as the uncertainty around β. In this context, B min is defined as the smallest subset of B such that min(B) in B min and for all β in B and not in B min , max(B min ) + err(max(B min )) < β’ err(β’). CLONET starts from min(B) and searches for a β’ value such that their difference is not explained by the error table. Then, CLONET selects the median value of B min as candidate and computes the uncertainty around as the minimum and the maximum of the β percentage of the distribution of B min . The value of β depends on the noise observed in the coverage (in this study we set β equal to 95%).

Given a somatic copy number C in a tumor sample, CLONET computes its local (Adm.local C ) and global ( admixture. The clonality Cl C of C is then defined as the percentage of tumor cells in a sample harboring C:

C l C = 1 β Adm . loca l C 1 β Adm . global

The more the value of Adm.local C differs from the estimated global admixture, the more C is subclonal, namely the value of Cl C approximates to 0. Finally, interval analysis [46] allows propagating uncertainty around β and to clonality (Figure S10D in Additional file 12).

Clonality of bi-allelic deletions

Equation 7 enables us to compute the percentage of tumor cells harboring any specific aberration (that is, its clonality) except for clonal bi-allelic deletions. For subclonal bi-allelic deletions the allelic fraction signal comes from cells with either two or one allele (Additional file 2). Consider a subclonal bi-allelic deletion where n (normal), m (mono-allelic), and b (bi-allelic) denote the proportion of cells with two, one, and zero alleles, respectively (n + m + b = 1). By Equation 1 one can assess a local estimate of the admixture (Adm.local) that represents the proportion of cells with two alleles in the subpopulation of cells with one or two alleles, that is n = Adm.local*(n + m). We can also observe that the proportion of normal cells n in the sample is equal to the global DNA admixture Finally, we define the clonality of a bi-allelic deletion Cl B as the percentage of cells harboring a bi-allelic deletion over the number of cells with a mono- or a bi-allelic deletion, that is, b/(m + b). One can prove (Additional file 1) that the clonality Cl b of a bi-allelic deletion is:

C l b = Adm . global - Adm . local × Adm . global Adm . local × 1 β Adm . global

Data availability

Binary sequence alignment/map (BAM) files of WGS data are accessible in the database of Genotypes and Phenotypes (dbGaP) with accession numbers phs000447.v1.p1 (prostate cancer [10]), phs000452.v1.p1 (melanoma [11]), and phs000488.v1.p1 (lung [12]); BAMs of WES data at dbGaP with accession number phs000447.v1.p1 (prostate cancer [17]).

CLONET source code

Source code is available at [47] and at the version-controlled repository [48].
