k-mer to lowest common ancestor database

At the core of Kraken is a database that contains records consisting of a k-mer and the LCA of all organisms whose genomes contain that k-mer. This database, built using a user-specified library of genomes, allows a quick lookup of the most specific node in the taxonomic tree that is associated with a given k-mer. Sequences are classified by querying the database for each k-mer in a sequence, and then using the resulting set of LCA taxa to determine an appropriate label for the sequence (Figure 1 and Materials and methods). Sequences that have no k-mers in the database are left unclassified by Kraken. By default, Kraken builds the database with k = 31, but this value is user-modifiable.

Simulated metagenome data

Although genuine metagenomic reads might provide the most realistic test of performance, such data would not allow us to assess classification accuracy, because the true species in metagenomic data sets today are mostly unknown. We instead used two simulated metagenomes created by combining real sequences obtained from projects that sequenced isolated microbial genomes. When creating these simulated metagenomes, we used data sequenced by the Illumina HiSeq and MiSeq sequencing platforms, and thus we call these the HiSeq and MiSeq metagenomes, respectively (see Materials and methods). These metagenomes were constructed to measure classification speed and genus-level accuracy for data generated by current and widely used sequencing platforms.

In addition to the two simulated metagenomes constructed with sequences from isolated genomes, we created a third metagenomic sample covering a much broader range of the sequenced phylogeny. This sample, featuring simulated bacterial and archaeal reads (called simBA-5), was created with an error rate five times higher than would be expected, to evaluate Kraken’s performance on data that contain many errors or have strong differences from Kraken’s genomic library (see Materials and methods).

Classification accuracy

Classifiers generally adopt one of two strategies: for example, PhymmBL and NBC classify all sequences as accurately as possible, while Kraken and Megablast leave some sequences unclassified if insufficient evidence exists. Because PhymmBL and NBC label everything, they will tend to produce more false positives than methods like Kraken. In turn, one can expect a selective classifier to have higher precision at some cost to sensitivity. Uniquely among metagenomics classifiers, PhymmBL supplies confidence scores for its classifications, which can be used to discard low-confidence predictions and improve accuracy. Using a lower bound of 0.65 for genus-level confidence, we created a selective classifier based on PhymmBL’s predictions that we denote as PhymmBL65.

To compare Kraken’s accuracy to these of other classification methods, we classified 10,000 sequences from each of our simulated metagenomes and measured genus-level sensitivity and precision (Figure 2 and Table 1). Here, sensitivity refers to the proportion of sequences assigned to the correct genus. Precision, also known as positive predictive value, refers to the proportion of correct classifications, out of the total number of classifications attempted. Kraken’s sensitivity and precision are very close to that of Megablast. For all three metagenomes, Kraken’s sensitivity was within 2.5 percentage points of Megablast’s. The use of exact 31-base matches, however, appears to yield a higher precision for Kraken, as its precision was the highest of all classifiers for each of the three metagenomes. As may be expected, the nonselective classifiers were able to achieve slightly higher sensitivity than the selective classifiers, but at the cost of a significantly lower precision, approximately 80% versus close to 100% for Kraken.

We also note the recent publication of a method, LMAT [12], which uses a k-mer indexing scheme similar to Kraken’s, but otherwise differs in its classification strategy. LMAT cannot easily be downloaded and run on our simulated data (see Additional file 1: Note 1) so instead we ran Kraken on a data set used for LMAT’s published results. For that data (the PhymmBL set), Kraken exceeded LMAT’s accuracy in both identifying read origin and identifying the presence of species in the sample. Both methods had essentially perfect (near 100%) precision, but Kraken correctly labelled the species of 89% of the reads while LMAT only did so for 74% of the reads. However, as we note, that data set does not provide a good basis for comparison because the reads are simulated without error from genomes included in both Kraken’s and LMAT’s databases.

Classification speed

Because of the very large size of metagenomic data sets today, classification speed is critically important, as demonstrated by the emergence of rapid abundance estimation programs such as MetaPhlAn. To evaluate classification speed, we ran each classifier, as well as MetaPhlAn, against each of the three metagenomes that we used to test accuracy (Figure 2).

Kraken classified reads much faster than any other classifier, with performance ranging from 150 to 240 times faster than the closest competitor. Kraken processed data at a rate of over 1.5 million reads per minute (rpm) for the HiSeq metagenome, over 1.3 million rpm for the simBA-5 metagenome and over 890,000 rpm for the MiSeq metagenome. The next fastest classifier, Megablast, had speeds of 7,143 rpm for the HiSeq metagenome, 4,511 rpm for the simBA-5 metagenome and 2,830 rpm for the MiSeq metagenome. For all three metagenomes, PhymmBL classified at a rate of <100 rpm and NBC at <10 rpm. Kraken is also more than three times as fast as MetaPhlAn (which only classifies a subset of reads), which had speeds of 445,000 rpm, 371,000 rpm and 276,000 rpm for the HiSeq, simBA-5 and MiSeq metagenomes, respectively. These results are shown in Figure 2. As expected, all tools processed the longer MiSeq reads (mean length μ = 156 bp) more slowly than the simBA-5 (μ = 100 bp) or HiSeq (μ = 92 bp) reads. We also performed a speed comparison against LMAT using one of the real samples discussed in LMAT’s published results; on this sample Kraken was 38.82 times faster than LMAT and 7.55 times faster than a version of LMAT using a smaller database (Additional file 1: Note 1).

Other variants of Kraken

To obtain maximal speed, Kraken needs to avoid page faults (instances where data must be brought from a hard drive into physical memory), so it is important that Kraken runs on a computer with enough RAM to hold the entire database. Although Kraken’s default database requires 70 GB of RAM, we also developed a method to remove k-mers from the database, which dramatically reduces the memory requirements. We call this version of Kraken, which uses a smaller database, MiniKraken. For our results here, we used a 4 GB database. Compared to Kraken, the ability of MiniKraken to recognize species from short reads is lower, with sensitivity for our real sequence metagenomes dropping approximately 11% (Figure 3 and Table 1). On the high-error simBA-5 metagenome, MiniKraken’s sensitivity was more than 25 percentage points lower than Kraken’s, indicating that for short reads, high error rates can cause substantial loss in sensitivity. However, for all three metagenomes, MiniKraken was more precise than Kraken.

MiniKraken’s high precision demonstrates that in many cases we do not need to examine all k-mers in a sequence to get the correct classification. Taking this idea to its extreme, we developed a ‘quick operation’ mode for Kraken (and MiniKraken), where instead of querying all k-mers in a sequence against our database, we instead stop at the first k-mer that exists in the database, and use the LCA associated with that k-mer to classify the sequence. This operation mode (denoted by appending -Q to the classifier name) allows Kraken to skip tens or hundreds of k-mer queries per sequence, significantly increasing its classification speed with only a small fall in accuracy (Figure 3 and Table 1). Because a database containing fewer k-mers requires more queries from a sequence to find a hit, MiniKraken-Q is slower than Kraken-Q, even when MiniKraken is faster than Kraken.

We also created a variant Kraken database that contains GenBank’s draft and completed genomes for bacteria and archaea, which we call Kraken-GB. The regular version of Kraken only includes RefSeq complete genomes, of which there are 2,256, while Kraken-GB contains 8,517 genomes. Our hypothesis was that Kraken-GB would have a higher sensitivity than standard Kraken for our metagenomes, by virtue of its larger database. Kraken-GB has a much higher sensitivity for the HiSeq and MiSeq metagenomes compared to Kraken (Figure 3 and Table 1), primarily due to the presence of two genomes in these simulated metagenomic samples that have close relatives only in Kraken-GB’s database (Materials and methods).

Although Kraken-GB does have higher sensitivity than Kraken, it sometimes makes surprising errors, which we discovered were caused by contaminant and adapter sequences in the contigs of some draft genomes. These contaminant sequences come from other bacteria, viruses or even human genomes, and they result in incorrectly labelled k-mers in the database. We attempted to remove these from Kraken-GB (Materials and methods), but some contaminants may still slip through any filters. Thus for now, the default version of Kraken uses only complete RefSeq genomes.

Clade exclusion experiments

An important goal of metagenomics is the discovery of new organisms, and the proper classification of novel organisms is a challenge for any classifier. Although a classifier cannot possibly give a novel species the proper species label, it may be able to identify the correct genus. To simulate the presence of novel organisms, we re-analyzed the simBA-5 metagenome after first removing organisms from the Kraken database that belonged to the same clade. That is, for each read, we masked out database hits for the species of the read’s origin, and evaluated Kraken’s accuracy at the higher ranks (e.g., genus and family). We continued this masking and evaluation process for clades of origin up to the phylum rank. This procedure approximates how Kraken would classify the metagenomic reads if that clade were not present in the database.

Human Microbiome Project data

We used Kraken to classify reads from three saliva samples collected as part of the Human Microbiome Project. Because these samples were obtained from humans, we created a Kraken database containing bacterial, viral and human genomes to classify these reads. Combining the three samples together, we report the taxonomic distribution of the classified reads (Figure 4). An analysis of the classified reads from the combined samples reveals that a majority of those reads were classified into one of three genera: Streptococcus (30%), Haemophilus (17%) and Prevotella (13%). Streptococcus mitis[13], Haemophilus parainfluenzae[14] and Prevotella melaninogenica[15], the most abundant species (by read count) of each of these three genera, are all known to be associated with human saliva. We also performed the classification on each sample separately (Additional file 1: Figures S1,S2,S3).

Of note is that 68.2% of the reads were not classified by Kraken. To determine why these reads were not classified by Kraken, we aligned a randomly selected subset of 2,500 of these unclassified reads to the RefSeq bacterial genomes using BLASTN. Only 11% (275) of the subset of unclassified reads had a BLASTN alignment with E-value ≤ 10⁻⁵ and identity ≥90%. This suggests that the vast majority of the reads not classified by Kraken were significantly different from any known species, and thus simply impossible to identify.

Sequence classification algorithm

To classify a DNA sequence S, we collect all k-mers within that sequence into a set, denoted as K(S). We then map each k-mer in K(S), using the algorithm described below, to the LCA taxon of all genomes that contain that k-mer. These LCA taxa and their ancestors in the taxonomy tree form what we term the classification tree, a pruned subtree that is used to classify S. Each node in the classification tree is weighted with the number of k-mers in K(S) that mapped to the taxon associated with that node. Then, each root-to-leaf (RTL) path in the classification tree is scored by calculating the sum of all node weights along the path. The maximum scoring RTL path in the classification tree is the classification path, and S is assigned the label corresponding to its leaf (if there are multiple maximally scoring paths, the LCA of all those paths’ leaves is selected). This algorithm, illustrated in Figure 1, allows Kraken to consider each k-mer within a sequence as a separate piece of evidence, and then attempt to resolve any conflicting evidence if necessary. Note that for an appropriate choice of k, most k-mers will map uniquely to a single species, greatly simplifying the classification process. Sequences for which none of the k-mers in K(S) are found in any genome are left unclassified by this algorithm.

The use of RTL path scoring in the classification tree is necessary in light of the inevitable differences between the sequences to be classified and the sequences present in any library of genomes. Such differences can, even for large values of k, result in a k-mer that is present in the library but associated with a species far removed from the true source species. By scoring the various RTL paths in the classification tree, we can compensate for these differences and correctly classify sequences even when a small minority of k-mers in a sequence indicate that the sequence should be assigned an incorrect taxonomic label.

Database creation

Efficient implementation of Kraken’s classification algorithm requires that the mapping of k-mers to taxa is performed by querying a pre-computed database. Kraken creates this database through a multi-step process, beginning with the selection of a library of genomic sequences. Kraken includes a default library, based on completed microbial genomes in the National Center for Biotechnology Information’s (NCBI) RefSeq database, but the library can be customized as needed by individual users [18].

Once the library is chosen, we use the Jellyfish multithreaded k-mer counter [19] to create a database containing every distinct 31-mer in the library. Once the database is complete, the 4-byte spaces Jellyfish used to store the k-mer counts in the database file are instead used by Kraken to store the taxonomic ID numbers of the k-mers’ LCA values. After the database has been created by Jellyfish, the genomic sequences in the library are processed one at a time. For each sequence, the taxon associated with it is used to set the stored LCA values of all k-mers in the sequence. As sequences are processed, if a k-mer from a sequence has had its LCA value previously set, then the LCA of the stored value and the current sequence’s taxon is calculated and that LCA is stored for the k-mer. Taxon information is obtained from the NCBI taxonomy database.

Database structure and search algorithm

Because Kraken very frequently uses a k-mer as a database query immediately after querying an adjacent k-mer, and because adjacent k-mers share a substantial amount of sequence, we utilize the minimizer concept [20] to group similar k-mers together. To explain our application of this concept, we here define the canonical representation of a DNA sequence S as the lexicographically smaller of S and the reverse complement of S. To determine a k-mer’s minimizer of length M, we consider the canonical representation of all M-mers in the k-mer, and select the lexicographically smallest of those M-mers as the k-mer’s minimizer. In practice, adjacent k-mers will often have the same minimizer.

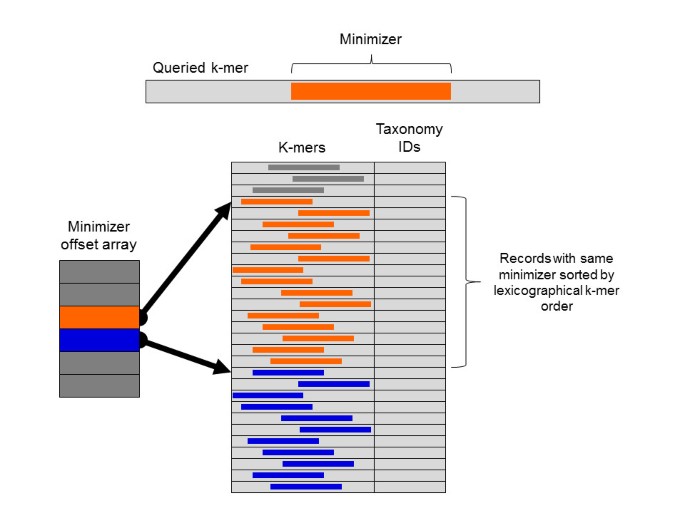

In Kraken’s database, all k-mers with the same minimizer are stored consecutively, and are sorted in lexicographical order of their canonical representations. A query for a k-mer R can then be processed by looking up in an index the positions in the database where the k-mers with R’s minimizer would be stored, and then performing a binary search within that region (Figure 5). Because adjacent k-mers often have the same minimizer, the search range is often the same between two consecutive queries, and the search in the first query can often bring data into the CPU cache that will be used in the second query. By allowing memory accesses in subsequent queries to access data in the CPU cache instead of RAM, this strategy makes subsequent queries much faster than they would otherwise be. The index containing the offsets of each group of k-mers in the database requires 8 × 4 ^M bytes. By default Kraken uses 15-bp minimizers, but the user can modify this value; for example, in creating MiniKraken, we used 13-bp minimizers to ensure the total database size stayed under 4 GB.

In implementing Kraken, we made further optimizations to the structure and search algorithm described above. First, as noted by Roberts et al. [20], a simple lexicographical ordering of M-mers can result in a skewed distribution of minimizers that over-represents low-complexity M-mers. In Kraken, such a bias would create many large search ranges, which would require more time to search. To create a more even distribution of minimizers (and thus speed up searches), we use the exclusive-or (XOR) operation to toggle half of the bits of each M-mer’s canonical representation prior to comparing the M-mers to each other using lexicographical ordering. This XOR operation effectively scrambles the standard ordering, and prevents the large bias toward low-complexity minimizers.

We also take advantage of the fact that the search range is often the same between queries to make Kraken’s queries faster. Rather than compute the minimizer each time we perform a query, we first search the previous range. If our queried k-mer is found in this range, the query can return immediately. If the k-mer is not found, then the minimizer is computed; if the k-mer’s minimizer is the same as the last queried k-mer’s, then the query fails, as the minimizer’s search space has been shown not to have the k-mer. Only if the minimizer has changed does Kraken have to adjust the search range and search again for the k-mer.

Constructing simulated metagenomes

The HiSeq and MiSeq metagenomes were built using 20 sets of bacterial whole-genome shotgun reads. These reads were found either as part of the GAGE-B project [21] or in the NCBI Sequence Read Archive. Each metagenome contains sequences from ten genomes (Additional file 1: Table S1). For both the 10,000 and 10 million read samples of each of these metagenomes, 10% of their sequences were selected from each of the ten component genome data sets (i.e., each genome had equal sequence abundance). All sequences were trimmed to remove low quality bases and adapter sequences.

The composition of these two metagenomes poses certain challenges to our classifiers. For example, Pelosinus fermentans, found in our HiSeq metagenome, cannot be correctly identified at the genus level by Kraken (or any of the other previously described classifiers), because there are no Pelosinus genomes in the RefSeq complete genomes database; however, there are seven such genomes in Kraken-GB’s database, including six strains of P. fermentans. Similarly, in our MiSeq metagenome, Proteus vulgaris is often classified incorrectly at the genus level because the only Proteus genome in Kraken’s database is a single Proteus mirabilis genome. Five more Proteus genomes are present in Kraken-GB’s database, allowing Kraken-GB to classify reads better from that genus. In addition, the MiSeq metagenome contains five genomes from the Enterobacteriaceae family (Citrobacter, Enterobacter, Klebsiella, Proteus and Salmonella). The high sequence similarity between the genera in this family can make distinguishing between genera difficult for any classifier.

The simBA-5 metagenome was created by simulating reads from the set of complete bacterial and archaeal genomes in RefSeq. Replicons from those genomes were used if they were associated with a taxon that had an entry associated with the genus rank, resulting in a set of replicons from 607 genera. We then used the Mason read simulator [22] with its Illumina model to produce 10 million 100-bp reads from these genomes. First we created simulated genomes for each species, using a SNP rate of 0.1% and an indel rate of 0.1% (both default parameters), from which we generated the reads. For the simulated reads, we multiplied the default mismatch and indel rates by five, resulting in an average mismatch rate of 2% (ranging from 1% at the beginning of reads to 6% at the ends) and an indel rate of 1% (0.5% insertion probability and 0.5% deletion probability). For the simBA-5 metagenome, the 10,000 read set was generated from a random sample of the 10 million read set.

Evaluation of accuracy and speed

We elected to measure accuracy primarily at the genus level, which was the lowest level for which we could easily determine the taxonomy information for PhymmBL and NBC’s predictions in an automated fashion. (This is due to the manner in which PhymmBL and NBC report their results). Because some genomes do not have taxonomic entries at all seven ranks (species, genus, family, order, class, phylum and kingdom), we defined genus-level sensitivity as A/B, where A is the number of reads with an assigned genus that were correctly classified at that rank, and B is the total number of reads with any assigned genus. We defined sensitivity similarly for other taxonomic ranks.

Because Kraken may classify a read at levels above the species, measuring its precision requires us to define the effect on precision of assigning the correct genus (for example) while not assigning a species at all. For this reason, we defined rank-level precision as C/(D + E), where C is the number of reads labeled at or below the correct taxon at the measured rank, D is the number of reads labeled at or below the measured rank, and E is the number of reads incorrectly labeled above the measured rank. For example, given a read R that should be labeled as Escherichia coli, a labeling of R as E. coli, E. fergusonii or Escherichia would improve genus-level precision. A label of Enterobacteriaceae (correct family) or Proteobacteria (correct phylum) would have no effect on genus-level precision. A label for R of Bacillus (incorrect genus) or Firmicutes (incorrect phylum) would decrease the genus-level precision.

When evaluating PhymmBL’s accuracy, following its developers’ advice [7], we selected a genus confidence threshold for our comparisons. We selected 3,333 reads from the simulated medium complexity (simMC) [23] data set, covering 31 different genera. To simulate short reads from the Sanger sequence data in the simMC set, we selected the last 100 bp from each of the reads. We then ran PhymmBL against those 100-bp reads, and evaluated the genus-level sensitivity and precision of PhymmBL’s predictions with genus confidence thresholds from 0 to 1, in increments of 0.05. We found that a threshold of 0.65 yielded the highest F-score (the harmonic mean of sensitivity and precision), with 0.60 and 0.70 also having F-scores within 0.5 percentage points of the maximum (Additional file 1: Table S2). We therefore used the 0.65 genus confidence threshold in our comparisons. Although the selection of a threshold depends on a user’s individual needs, and so is to some extent arbitrary, a threshold selected in this manner provides a more proper comparison to a selective classifier such as Kraken than no threshold at all.

The time and accuracy results when using Megablast as a classifier were obtained from the log data produced by PhymmBL, as PhymmBL uses Megablast for its alignment step. When assigning a taxonomic label to a read with Megablast, we used the taxon associated with the first reported alignment. Megablast was run with default options.

Speed was evaluated using the single-threaded operation of each program (except for NBC). PhymmBL was altered so that its call to the blastn program used one thread instead of two. NBC was run with 36 concurrent processes operating on disjoint sets of genomes in its genomic library, and the total time for the classifier was determined by summing the decompression and scoring times for each genome. Wall clock times were recorded for all classifiers. In comparing Kraken to the other classifiers, we used BLAST+ 2.2.27, PhymmBL 4.0, NBC 1.1 and MetaPhlAn 1.7.6. Classifiers were all run on the same computer, with 48 AMD Opteron 6172 2.1 GHz CPUs and 252 GB of RAM, running Red Hat Enterprise Linux 5. The data sets used for speed evaluation had 10,000 reads each for all programs other than Kraken (and its variants) and MetaPhlAn, which used 10,000,000 read data sets. Higher read numbers were used with these faster programs to minimize the effect of the initial and final operations that take place during the programs’ execution.

Although Kraken is the only one of the programs we examined that explicitly performs operations to ensure its data is in physical memory before classification, we wanted to be sure that all programs were evaluated in a similar manner. When evaluating speed, for each program, we read all database files (e.g. IMM files and BLAST databases for PhymmBL, k-mer frequency lists for NBC and the Bowtie index for MetaPhlAn) into memory three times before running the program, in order to place the database content in the operating system cache (which is stored in physical memory).

Reduced database sizes

To generate the 4-GB database for our MiniKraken results, we removed the first 18 of every block of 19 records in the standard Kraken database. A shrinking factor of 19 was selected as it was the smallest integer factor that would reduce the size to less than 4 GB, a size that can easily fit into the memory of many common personal computers. For users that have more RAM available, Kraken allows a smaller shrinking factor to be used, which will give increased sensitivity.

Use of draft genomes

When constructing the Kraken-GB database, we noticed there were several contigs with known adapter sequences at the ends. In subsequent tests, we also found that some sequences in samples with large amounts of human sequence were consistently misclassified by this database, leading us to conclude that contamination was likely present in the draft genomes. In an attempt to counteract this contamination, we removed from the database those k-mers from known adapter sequences, as well as the first and last 20 k-mers from each of the draft contigs. While this did improve classification, it did not eliminate the misclassification problem. For this reason, we believe that if draft genomes are used in a Kraken database, very stringent measures should be used to remove contaminant sequences from the genomic library.

Clade exclusion experiments

When re-analyzing the simBA-5 data set for our clade exclusion experiments, some reads were not used for certain pairs of measured and excluded ranks. If a read’s origin lacked a taxonomic entry at either of the measured or excluded ranks, it was not used for that particular experiment.

In addition, a read was not used in an experiment unless at least two other taxa represented in our database (aside from the excluded clade) at the excluded rank shared the clade of origin’s taxon at the measured rank. For example, a read from genus G would not be used in an experiment measuring accuracy at the class rank and excluding the genus rank unless G’s home class had at least two other genera with genomes in Kraken’s genomic library. Without this filtering step, were a genus excluded when it was the only genus in its class, Kraken could not possibly name the correct class, as all entries in the database from that class would be excluded as well. This is the same approach taken in similar experiments that were used to evaluate PhymmBL [5].

Human microbiome data classification

We classified the Human Microbiome Project data using a Kraken database made from complete RefSeq bacterial, archaeal and viral genomes, along with the GRCh37 human genome. We retrieved the sequences of three accessions (SRS019120, SRS014468 and SRS015055) from the NCBI Sequence Read Archive, and each accession had two runs submitted. All reads were trimmed to remove low quality bases and adapter sequences. Krona [24] was used to generate all taxonomic distribution plots.

Because the sequences were all paired reads, we joined the reads together by concatenating the mates with a sequence of ‘NNNNN’ between them. Kraken ignores k-mers with ambiguous nucleotides, so the k-mers that span these ‘N’ characters do not affect classification. This operation allowed Kraken to classify a pair of reads as a single unit rather than having to classify the mates separately.

Software and data availability

Kraken is written in C++ and Perl, and is available for download at [25] along with the metagenome data used to evaluate the accuracy of the classifiers presented here, and a downloadable 4-GB MiniKraken database similar to the one used here. The source code is also available from GitHub [26].
