- Open Access
Inferring gene function from evolutionary change in signatures of translation efficiency
© Krisko et al.; licensee BioMed Central Ltd. 2014
- Received: 24 May 2013
- Accepted: 3 March 2014
- Published: 3 March 2014
The genetic code is redundant, meaning that most amino acids can be encoded by more than one codon. Highly expressed genes tend to use optimal codons to increase the accuracy and speed of translation. Thus, codon usage biases provide a signature of the relative expression levels of genes, which can, uniquely, be quantified across the domains of life.
Here we describe a general statistical framework to exploit this phenomenon and to systematically associate genes with environments and phenotypic traits through changes in codon adaptation. By inferring evolutionary signatures of translation efficiency in 911 bacterial and archaeal genomes while controlling for confounding effects of phylogeny and inter-correlated phenotypes, we linked 187 gene families to 24 diverse phenotypic traits. A series of experiments in Escherichia coli revealed that 13 of 15, 19 of 23, and 3 of 6 gene families with changes in codon adaptation in aerotolerant, thermophilic, or halophilic microbes. Respectively, confer specific resistance to, respectively, hydrogen peroxide, heat, and high salinity. Further, we demonstrate experimentally that changes in codon optimality alone are sufficient to enhance stress resistance. Finally, we present evidence that multiple genes with altered codon optimality in aerobes confer oxidative stress resistance by controlling the levels of iron and NAD(P)H.
Taken together, these results provide experimental evidence for a widespread connection between changes in translation efficiency and phenotypic adaptation. As the number of sequenced genomes increases, this novel genomic context method for linking genes to phenotypes based on sequence alone will become increasingly useful.
- Codon Usage
- Translation Efficiency
- Codon Bias
- Optimal Codon
- Phylogenetic Profile
The genetic code is redundant, meaning that most amino acids can be encoded by more than one codon. Across diverse species, highly expressed genes tend to use optimal codons to increase the accuracy and speed of translation by ensuring better agreement with the cellular tRNA pools [1–3]. Consequently, codon biases are predictive of expression levels in both natural [4, 5] and designed [6, 7] gene sequences. This ‘translational selection’ acting to increase the use of optimal codons is stronger in faster growing microbes with large effective population sizes , but it has been shown to be widespread in both prokaryotes and eukaryotes [9–11], allowing the signatures of high gene expression to be detected and compared across species [12, 13].
Interestingly, several previous studies have suggested a link between increased translation efficiency in specific groups of orthologous genes and phenotypic change during evolution [14–16]. Examples include increased codon optimization of photosynthesis genes in Synechocystis and methanogenesis genes in Methanosarcina acetivorans, reflecting their trophic preferences, and an increased use of optimal codons in glycolytic enzymes in anaerobic microbes or in the Krebs cycle in aerobes . In nine yeast species, the same trend was observed  and, in addition, species adapted either to aerobic or anaerobic growth had consistently higher codon adaptation in the mitochondrial or cytoplasmic ribosomal protein (RP) genes, respectively. This correlation could not be explained by the phylogenetic distribution of (an)aerobes, indicating that mere genetic drift is not sufficient to drive the evolution of translation efficiency .
These examples of the coupling of codon usage to adaptive phenotypic variation suggest that it might be possible to systematically infer gene function from evolutionary change in the use of optimal codons. The basis for this argument is that diverse species sharing a common phenotypic trait, such as resistance to high temperature, might show increased expression, via a convergent codon adaptation, in a common set of genes involved in that phenotypic trait. However, four important challenges have so far prevented the large-scale inference of novel translation efficiency-phenotype links: 1) insufficient coverage with genomic sequences necessary to detect a weak evolutionary signal; 2) methodological issues with common approaches for predicting expression from codon biases in certain genomes [5, 17, 18], and with rescaling the predictions to make them comparable across genomes; 3) difficulties in disentangling the influences of the phylogeny and a particular phenotype; and 4) extensive correlations between different phenotypes. For instance, Archaea are typically obligate anaerobes, and within Bacteria, thermophiles tend to be less commonly aerotolerant than mesophiles. Thus, an observed correlation between a genomic feature and aerotolerance might be an artifact of either thermophilicity or phylogenetic relatedness.
Here, we explicitly address these issues using a novel statistical framework to identify meaningful correlations between phenotypes and signatures of selection for translation efficiency. Our approach generalizes over the previous explanatory models for a few select phenotypes to a broadly applicable framework that generates many testable predictions about the genes involved in adaptation to various environments. We experimentally validate a set of predicted gene-phenotype links for genes involved in three environmental adaptations: resistance to oxidative stress, heat, and high salinity. Moreover, we confirm experimentally that changing the codon usage of a gene can be sufficient to confer the expected stress resistance phenotype. Our approach therefore provides a potentially general strategy for annotating gene function in newly sequenced genomes by identifying genes whose translation efficiency is linked to particular phenotypes, important stress responses, or environmental adaptations.
A novel method links translation efficiency of gene families to phenotypes
Genomes under weak selection for translation efficiency represent a difficult case for detecting signatures of expression levels in codon biases. In three out of four such genomes, the predictions from our machine learning-based method showed better correlation with mRNA levels than did those obtained by a commonly used approach, the CAI  (Figure 1C; combined P = 0.0053, one-tailed Kolmogorov-Smirnov test). Importantly, although gene expression levels may change substantially across different conditions, the genome-encoded codon biases are static, and are likely to reflect the gene expression in a typical environment encountered by the organism during evolution .
In addition to codon usage, other coding sequence determinants can shape protein levels. For instance, strong secondary structures at the mRNA 5′ end were shown to influence translation efficiency in a library of synthetic gene variants . However, we found no correlation between mRNA 5′ folding free energies and gene expression levels in the 19 evaluated bacterial genomes (median r = 0.02 to 0.05; see Additional file 4), in contrast to various codon indices (median r = 0.22 to 0.43). This is consistent with mRNA folding being more relevant for highly stable 5′ mRNA structures , which we found to occur only infrequently in real genomes (median 13 to 17% of genes, depending on their position in the mRNA; see Additional file 4).
In 71 of 911 genomes, the detected codon bias did not fully match the optimal codons predicted from genomic tRNA gene composition (see Additional file 6), and it is thus not clear whether translational selection causes the observed signature of high expression in these genomes. tRNA modifications have been hypothesized as a cause for such discrepancies [9, 27]. Upon excluding the 71 genome set, we found that our 200 phenotype predictions were highly robust to this factor (see Additional file 7).
Next, for three selected phenotypes, we evaluated these predictions by performing experiments in a series of Escherichia coli deletion mutants.
Genes with altered codon adaptation in aerobes protect E. coliagainst oxidative stress
We first focused on genes with differential translation efficiency signatures between 514 aerotolerant microbes and 214 obligate anaerobes. We found that 295 COGs had a significant change in the content of highly expressed (HE) genes (at least twofold enrichment, FDR = 9.6% by Fisher’s exact test). Of these, only 23 COGs passed a control to ensure that the enrichment for HE genes could not be explained by the 23 other phenotypes, the 6 genomic features, or the 70 taxonomic subdivisions (P < 10-2, Random Forest permutation test). The percentages of HE genes for four example COGs passing or failing this test are shown for select phenotypes in Figure 2C, and the enrichments for a broader set of COGs and phenotypes are shown in Figure 2D. Similarly, a comparison between 296 obligate aerobes and 217 facultative aerobes identified 160 differentially expressed COGs (FDR = 11.8%), with 11 COGs remaining after controlling for confounding factors. In total, 34 differentially expressed COGs were found for the two oxygen-related phenotypes.
To verify that the deletions caused sensitivity to oxidative stress specifically instead of a general frailty of the bacteria, we exposed the mutants to heat and osmotic shock, and found that 13 strains were as resistant as the wild type (≥90% of wild-type survival, Figure 3A). The two remaining non-specifically sensitive strains were recA, deficient in the SOS response and in recombination DNA repair, and lon, lacking a major protease dealing with clearance of oxidized proteins. Both mutants are known to be sensitive to a variety of different stresses.
Finally, a literature search yielded additional evidence supporting a role in oxidative stress resistance for 4 of the 13 genes in E. coli or other organisms: sufD[28–30], clpA[31, 32], and gpmM in bacteria, and the orthologs of icd and gpmM in mice (see Additional file 10). Two additional genes, lpd and cysD[37, 38], are known to be targets of regulation during aerobiosis or oxidative stress in bacteria. Of the remaining seven genes, three have other known functions (napF, rseC, and fre are all oxidoreductases) while the other four genes (yaaU, yidH, ybeQ, ybhJ) are poorly characterized. The fre gene has a high-confidence predicted functional interaction with a catalase and a peroxiredoxin (see Additional file 11) in the STRING database , based on their correlated expression patterns, and the cysD gene to a thioredoxin reductase, based on text mining evidence (see Additional file 11). Interestingly, ybhJ is a catalytically inactive paralog of the E. coli aconitase enzyme , which is also known to act as a superoxide sensor and a regulator of stress response genes .
The novel oxidative stress proteins contribute to homeostasis of iron and NAD(P)H
To better describe the specific roles played by these 13 proteins in oxidative stress defense, we measured cytoplasmic levels of reactive oxygen species (ROS) and found them to be increased compared with the wild-type in only 3 of the 13 strains: cysD, rseC, and yaaU; Figure 4A), as well as in the sodA positive control. Therefore, the majority of these genes appear not to act by detoxifying ROS, but instead by preventing or repairing the damage that ROS cause to cellular components.
Based on their known molecular functions (see Additional file 12) and the lack of increased ROS generation, we hypothesized two possible general roles for these novel genes in oxidative stress resistance: 1) that they function by maintaining the cellular redox state through supporting NAD(P)H production, and 2) that they influence iron homeostasis. These two roles are also suggested by the known functions of the predicted functional interaction partners of these novel genes as presented in the STRING database  (see Additional file 13). NAD(P)H levels are known to affect oxidative stress resistance in different ways, including the NADH-driven AhpC enzyme that detoxifies peroxides, or the NADPH-driven regeneration of glutaredoxins and thioredoxins, which reverse oxidative damage to proteins . Iron is well known to aggravate the damaging effects of H2O2 through hydroxyl radical-generating reactions [43, 44].
Given that oxidative stress is known to upregulate synthesis of NADPH at the expense of NADH in bacteria [45–47], we focused on the former metabolite. We found experimentally that 8 of the 13 deletion mutants did indeed have reduced NADPH levels (Figure 4A, B), including 3 that could be implicated in NADPH production from previous knowledge (lpd, gpmM, and icd; see Additional file 12) and 5 additional genes (yaaU, cysD, rseC, ybhJ, and yidH). Moreover, pre-treating the bacteria with exogenous NADPH rescued the H2O2-sensitive phenotype of all these strains, but none of the strains with normal NADPH levels, (Figure 4A, C), lending support to the hypothesis that the diminished NADPH levels of these eight strains are a contributing factor to the reduced H2O2 resistance.
To determine the gene products that might act via regulating iron levels, we measured total cellular iron, and found it to be at higher concentrations relative to the wild type in five of the deletion mutants (fre, sufD, rseC, lpd, and yidH; Figure 4A, 4B). Three of the deleted genes could be connected to iron-related processes based on previous knowledge (fre, sufD, and rseC; see Additional file 12). A complementary assay using the iron chelator 2,2′-dipyridyl showed that the rseC, fre, sufD, and yidH deletion mutants had diminished sensitivity to H2O2 after dipyridyl pre-treatment (Figure 4A, B), with some response noted for lpd. This outcome corroborated the putative role of these genes in helping maintain iron homeostasis.
While there are many proteins whose translation efficiency could have evolved as adaptation to oxidative stress, our experiments indicate that two important mechanisms that are actually employed are an abundant supply of biological reducing agents and careful management of iron levels.
Validation of a role for codon optimality in additional phenotypic adaptations
Phenotypic effects of designed gene variants with reduced translation efficiency
While experiments on gene deletion strains can demonstrate the importance of a particular gene for a given phenotype, the natural changes in use of optimal codons are likely to cause less severe effects, such as changes in translation speed and/or accuracy. To show more directly that a change in the translation efficiency of the predicted gene families can bring about a phenotypic change, we selected two E. coli genes (clpS and yjjB) with prominent knockout effects on heat and osmotic shock survival, respectively (Figure 5A, B), and altered the genes’ codon usage.
The large number of sequenced prokaryotic and eukaryotic genomes presents an opportunity to better understand how organism physiology adapts to the environment. However, even in model organisms, a significant proportion of genes remains poorly functionally characterized . Computational gene function inference methods can direct experimental work to discover the biological roles of such genes. One approach for predicting gene function is to use the presence/absence patterns of orthologous genes across species [50, 51]. However, these ‘phylogenetic profiles’ capture only a subset of functional relationships , even though research efforts continue to gradually improve the methods for mining such data . Similarly to the phylogenetic profiles, the signatures of gene expression levels reflected in codon biases are in principle discoverable in any organism for which the genome sequence is available. Such signatures are known to evolve in response to the environment within selected gene families and functional modules [9, 12, 14, 16], and also to contribute to speciation in bacteria . In addition, the environment has a global, genome-wide effect on codon biases; organisms adapted to living in multiple habitats exhibit a wider spread of codon usages between genes . Here, we have described a method to systematically exploit the signal present in the synonymous sites of particular genes, while controlling for confounding variables such as phylogenetic proximity or correlated phenotypes. In this way, we were able to discern those correlations likely to correspond to true cause-and-effect relationships between the gene translation efficiency and the phenotype, providing a general scheme for prioritization of gene annotation experiments.
We would expect our predictions to be complementary to existing genome context methods ; for instance,, the functional interactions in STRING  predicted from gene occurrence in genomes, or the interactions from conserved gene neighborhoods, did not retrieve the same 34 oxidative stress COGs we found (no statistically significant difference from a random gene set; see Additional file 15). This implies that the predictions about oxidative stress genes that we have made and experimentally validated are not easily reachable by phylogenetic profiling or gene neighborhood methods. Interestingly, the set of discovered genes did not include the catalases katE/G/P, which are prominent E. coli antioxidant proteins. On closer inspection, the catalase COGs were enriched with HE genes in aerotolerant organisms (katE 3.4-fold, katG/P 3.2-fold), but they had very few gene representatives in aerointolerant microbes (see Additional file 16) and did not reach statistical significance. Therefore, catalases are an example of a gene family whose function is better discoverable by phylogenetic profiling , which correlates gene presence/absence with phenotypes (see Additional file 16; Fisher’s exact test P = 10-25 and P = 10-14 for katE and katG/P, respectively), serving to illustrate the complementary nature of the approaches.
To more systematically evaluate the sensitivity of our method, we performed a cross-validation test that retrieves E. coli genes with a known function through similarities of their translation efficiency profiles across different genomes (see Additional file 17). By extrapolation, we estimate that our method could retrieve on average 23% (10 to 29%; see Additional file 17) of the yet undiscovered genes relevant for different environmental responses. For comparison, phyletic profiling retrieves 32% (10 to 48%; see Additional file 17) of such unknown genes in the same setting. Therefore, the translation efficiency profiles possess around three-quarters of the detection power of the established phyletic profiling approach, but draw on an orthogonal and previously unexploited source of evolutionary signal. Moreover, the two methodologies can provide complementary gene function predictions: upon applying the models from the cross-validation test to a broader set of 3,534 E. coli genes, 69 genes were assigned a novel role in an environmental response exclusively by the translation efficiency profiles, while 86 genes were predicted a function exclusively by the phyletic profiles; 101 more genes had predictions by both methods (see Additional file 17).
We have experimentally demonstrated that genes exhibiting differential signatures of translational efficiency in aerobes and anaerobes have a role in defending E. coli from H2O2-induced oxidative stress. In addition to genes with previously unknown functions, we found genes with known roles in central metabolism to be important for averting oxidative damage, consistent with a known broad metabolic reprogramming of bacteria upon oxidative stress [57, 58]. As the aerobicity-related changes in translation efficiency of these gene families across genomes could not be explained by the bacterial and archaeal phylogeny, the aerobes have likely independently evolved convergent codon bias patterns in different lineages under similar selective pressures. Our work, together with the aerobicity-related signatures in codon biases previously found in nine yeasts , will help describe the evolution of functional categories for surviving oxidative injury. Such findings may have implications for strategies to modulate the response of pathogens to macrophage assault, or, more broadly, for understanding ROS-induced pathologies and aging in higher organisms.
In addition to aerotolerance, we also predicted and experimentally validated the phenotypic consequences of the thermophilicity-related and halophilicity-related evolutionary codon bias signatures, thus further showing that our approach will be applicable to diverse phenotypes. Furthermore, for representative genes, we complemented the corresponding deletion mutants with synthetic variants that had altered codon optimality. Previous work used designed libraries of gene variants harboring synonymous mutations to demonstrate how they influence the levels of the corresponding protein [6, 25]. Similarly, we experimentally changed the translation efficiency of selected genes, but in this instance we demonstrated an organism-level effect of the synonymous changes – a phenotypic change that recapitulates the discovered evolutionary trends. This validation of the pervasive gene codon adaptation-phenotype relationships that we found through computational analysis suggests that changes in translation efficiency may be broadly acting drivers of phenotypic change.
In summary, our work introduces a novel ‘genomic context’ approach to infer gene function from differences in translation efficiency. We anticipate that the power of this purely sequence-based methodology will grow as the number of fully sequenced genomes, as well as the systematic phenotypic annotations of organisms, increases. To facilitate further experimental work on other putative gene-phenotype connections, we supply the inferred 200 high-confidence links from all COGs to 24 phenotypes (see Additional file 18), as well as a broader set of thousands of predictions obtained at relaxed specificity thresholds.
Analyzed genomes and predicted gene expression levels
We downloaded 1,275 fully sequenced prokaryotic genomes from the NCBI database . Multiple strains of a single species were removed to counter biases toward commonly re-sequenced species, such as E. coli or Streptococcus pyogenes, resulting in 912 species-level representatives. Because we later used E. coli MG1655 as the experimental model to verify our predictions, its genome was removed from the set of analyzed genomes in order to avoid circularity, leaving a final set of 911 genomes; other E. coli strains were also removed.
In brief, the computational pipeline for predicting high/low expression of genes from the genome sequence (Figure 1A; see Additional file 1) involved training an RF classifier  to discriminate known HE genes (RPs and chaperones) from the rest of the genome using codon frequencies, and comparing the predictions of the trained RF model against those of a baseline RF model trained on composition of the neighboring intergenic DNA of these genes. This approach is a variant of the methodology presented by Supek et al. , therefore, we include a detailed description of the computational pipeline (see Additional file 1), as well as a list of the changes from the original version.
Testing for correlation of lifestyles with gene expression
After obtaining the HE or non-HE label for each gene in the 911 genomes, we used Fisher’s exact test to call enrichment/depletion for HE genes within COGs in genomes grouped by environment, phenotype, or taxonomy. In particular, for each COG: 1) we tested whether its representatives are more/less frequently HE in 514 aerotolerant microbes compared with the 214 obligate anaerobes (note that some organisms had this phenotype undefined); 2) we checked within the aerotolerant microbes for enrichment/depletion of HE genes in 296 obligate aerobes in comparison to the 217 facultative aerobes; 3) we tested for enrichment/depletion of HE genes in 142 thermophiles versus 643 non-thermophiles; and 4) assessed enrichment/depletion of HE genes in 40 halophiles versus 140 non-halophiles (again, for the majority of organisms, the halophilicity was undefined).
Additionally, the same tests were performed for other descriptions of phenotypes or taxonomy, obtained as follows. Descriptions of the microbes’ environments or phenotypes were assembled from the NCBI Entrez Microbial Genome Properties website , followed by manual curation, particularly for pathogenicity phenotypes. All properties of interest were encoded as a series of binary (‘yes/no’ or ‘low/high’) categorical variables, possibly with missing values; the two continuous variables – GC content and genome size – were discretized into four classes. In total, this yielded 24 phenotypic features and 6 features describing the GC content and genome size (see Additional file 5). The organisms’ taxonomy was handled in a similar manner, where the possible taxonomic subdivisions at the domain, phylum, class and order level were encoded as ‘yes’/‘no’/‘not applicable’ categorical variables, yielding 70 features (see Additional file 5), for a total of 100 features per genome.
Thresholds for COG size, enrichment, and statistical significance
We excluded from testing all COG groups with fewer than 20 representative genes in total (counted over all genomes, regardless of the phenotype), or with more than 10,000 genes in total, leaving 4,387 COGs of possible interest.
For each of these COGs, all phenotypes of interest were screened for enrichment with HE genes of two-fold or higher (or ≤0.5-fold depletion) in that specific phenotype. compared with the organisms known not to have the phenotype. These COGs were then tested for statistical significance of the enrichment using Fisher’s exact test (two-tailed) at P < 10-2. The four phenotypes that we subsequently validated experimentally were: 1) 514 aerotolerant microbes versus 214 obligate anaerobes: 295 of 2,847 tested COGs were significantly enriched/depleted for HE genes; FDR = 9.6%; 2) 296 obligate aerobes versus 217 facultative aerobes: 160 of 1,887 tested COGs were significantly enriched/depleted for HE genes; FDR = 11.8%; 3) 142 thermophiles versus 643 non-thermophiles: 346 of 2,287 tested COGs were significantly enriched/depleted for HE genes; FDR = 6.6%; and 4) 40 halophiles versus 140 non-halophiles: 55 COGs of 1,863 tested COGs were significantly enriched/depleted for HE genes; FDR = 33.9%.
Controlling for confounding effects of other phenotypes and phylogenetic proximity
Construct the dataset. For each gene family (here, COG) make a separate dataset that has as many instances (examples) as there are genes in the COG (possibly >1 per genome), and as many independent variables (features) as there are phenotypes and phylogenetic subdivisions (here, 100), plus one dependent variable (class) with the predicted expression levels in the form of HE/non-HE labels.
Train the classifier and evaluate the model. Run the classifier and evaluate the accuracy of its predictions (here, using the area under the receiver operating characteristic curve (AUC) score ), while employing a cross-validation scheme. This setup penalizes overly complex models that over-fit to noise in the data, while rewarding models that generalize to unknown data better. Here, we used theRF  classifier as implemented in the FastRandomForest software  that integrates into the Weka Environment for Knowledge Analysis .
Repeat for randomized datasets. Shuffle a single dependent variable (here, phenotype) while leaving other phenotype/taxonomy-describing variables intact, and repeat the classifier training, and measure the cross-validation AUC score. Repeat this step 30 times while re-shuffling the same variable each time.
Test for consistent decrease in AUC score. Calculate a Z-score (number of standard deviations a measurement is away from the mean) for AUCoriginal compared with a distribution of 30 AUCshuffled values. From the Z-score, find a one-tailed P value (using the cumulative distribution function of the normal distribution) that indicates whether the AUC score consistently decreases with randomization of the variable of interest.
For all phenotypes/environments of interest, repeat randomization test (steps 3 and 4). Here, these are the two tested aerobicity-related phenotypes; see section ‘Testing for correlation of lifestyles to gene expression’ above.
For all COGs, repeat steps 1 to 5.
The rationale behind the procedure is that shuffling one of the variables will destroy the information that variable might carry and that is relevant for predicting the high/low expression level. If this same information can be recovered from the other variables (possibly by combining them), the accuracy of classification will not be lowered by the randomization, whereas in cases where the variable in question is informative of the expression level of the genes in a way that cannot be substituted for by the remaining variables, the accuracy of the classification model will be reduced by randomization.
Bacterial strains, growth conditions, and stresses
All the used strains as well as specifics of their construction are listed (see Additional file 19). All strains were derived from wild-type sequenced E. coli MG1655 by P1 transduction and/or transformation. Relevant plasmids were purchased from the ASKA library . Bacteria were grown in LB at 37°C, to the mid-exponential phase (OD600 = 0.2 to 0.3).
For the H2O2 treatment, they were washed in 0.01 M MgSO4 and incubated at 37°C for 20 minutes in the absence and presence of 0.5 mM, 2.5 mM, and 20 mM H2O2. Osmotic shock was achieved by exposing exponentially growing E. coli to 1 M NaCl (final) for 1 hour, and heat shock was achieved by growing E. coli at 56°C for 100 minutes. Viable cell counts were always estimated by plating serial dilutions on LB plates and growing overnight at 37°C.
To test if the mortality of E. coli deletion mutants upon exposure to H2O2 was caused by the increased ROS production, we performed a rescue experiment using 5 mM N-acetyl cysteine (NAC), a known ROS scavenger. Overnight cultures of E. coli were diluted 200 times and grown in the presence ofthe 5 mM NAC until the mid-exponential phase. Cells were then washed and oxidized with 2.5 mM H2O2 for 20 minutes, and survival was measured as described above.
Measuring protein carbonylation and reactive oxygen species production
Exponentially growing bacteria were harvested from LB medium. E. coli cells were pelleted by centrifugation and resuspended in 10 mM PBS (pH 7.4), supplemented with a mixture of protease inhibitors (Roche, Basel, Switzerland). Resuspended cells were frozen immediately in liquid nitrogen. Cells were broken by a mechanical homogenizer, and centrifuged for 20 minutes at 12,000 × g. Samples were then supplemented with 10 mg/100 μl lipid removal agent (13360-U; Sigma, St. Louis, Missouri, USA), incubated for 1 hour at room temperature with shaking, and centrifuged for 15 minutes at 10,000 × g. The amount of protein in the supernatant was measured by the Lowry method. Protein extracts diluted to 10 μg/ml were loaded into wells (Maxisorb; Nunc, Roskilde, Denmark) and incubated overnight at 4°C to allow proteins to adsorb to the surface, followed by 0.6 mM dinitrophenyl hydrazine (DNPH) derivatization of adsorbed proteins and detection of derivatized dinitrophenol (DNP)-carbonyl by a mouse DNP-specific monoclonal antibody conjugated to horseradish peroxidase. Subsequent incubation with enzyme substrate 3,3′,5,5′-tetramethylbenzidine (TMB; Sigma, St. Louis, Missouri, USA) resulted in a colored product that was quantified using a microplate reader at 450 nm.
ROS levels were determined by labeling E. coli strains with 25 μM dihydrorhodamine-123 for 10 minutes in the dark, in the absence or presence of hydrogen peroxide. Cells (approximately 106) were then washed in minimal medium, and their fluorescence was measured with excitation at 500 nm and emission at 530 nm. In addition, E. coli strains were labeled with CellROX™ Deep Red reagent (Invitrogen, Carlsbad, California, USA) in the absence or presence of hydrogen peroxide. Cells (approximately 106) were washed in minimal medium, and their fluorescence was measured with excitation at 630 nm and emission at 665 nm.
Measurement of cellular NADPH and Fe, and rescue experiments
We measured intracellular NADPH level using a commercial kit (Vybrant Cytotoxicity Assay Kit; Molecular Probes, Eugene, Oregon, USA) that is normally used to monitor the release of the enzyme glucose 6-phosphate dehydrogenase (G6PD) from damaged cells. Oxidation of glucose-6-phosphate by G6PD results in the generation of NADPH, which in turn leads to the reduction of resazurin by diaphorase to yield fluorescent resorufin. We took advantage of the second reaction to measure NADPH levels directly, while filtering the cellular extract of each studied strain through a 3 kDa cutoff centrifugal filter (Amicon Ultra; Millipore, Billerica, Massachusets, USA) to prevent the cellular proteins (including G6PD) from creating a background with the reaction mixture. A sample (100 μL) of each cellular filtrate was distributed into wells twice in duplicate, and the level of NADPH was determined as follows. A reaction mixture was prepared by dissolving a lyophilized mixture of diaphorase, glucose-6-phosphate, and NADP+ (Component C of the kit) in 0.5 M Tris buffer pH 7.5 (Component D of the kit). The reaction mixture was then combined with the solution of resazurin so that the final concentration of resazurin was 30 μM (component A). Then, 100 μL of the final mixture was loaded onto the samples distributed in the wells, and incubated at 37°C for 5 hours. The amount of NADPH was measured as the absorbance at 570 nm.
To test which E. coli strains were rescued by pre-treatment with NADPH, exponentially growing E. coli strains were first exposed to 1% v/v toluene in the presence of 10 mM EDTA (known to permeabilize the bacterial membranes to NADPH ) and then exposed to 20 μM NADPH dissolved in 10 mM PBS, (pH 7.4). Cells were then treated with H2O2, washed in 0.01 M MgSO4, and incubated at 37°C for 20 minutes in the absence or presence of 2.5 mM H2O2. Viable cell counts were estimated by plating serial dilutions on LB plates and growing overnight at 37°C.
We measured the level of cellular iron (both Fe2+ and Fe3+) as described by Rad et al. . In particular, about 107 exponentially growing E. coli cells were pelleted and incubated overnight at 110°C without tube caps. After evaporation of liquid, 1 ml of 10 M HCl was added, and samples were incubated for 4 h at 60°C. Next, the content of each tube was diluted twofold with 10 M HCl, and absorbance was measured at 351 nm. To test which E. coli strains were rescued by pre-treatment with 2,2′-dipyridyl (iron chelator), exponentially growing E. coli strains were exposed to 0.4 mg/ml (final concentration) dipyridyl. Cells were then treated with H2O2 as described above, and viable cell counts were estimated by plating serial dilutions on LB plates and growing overnight at 37°C.

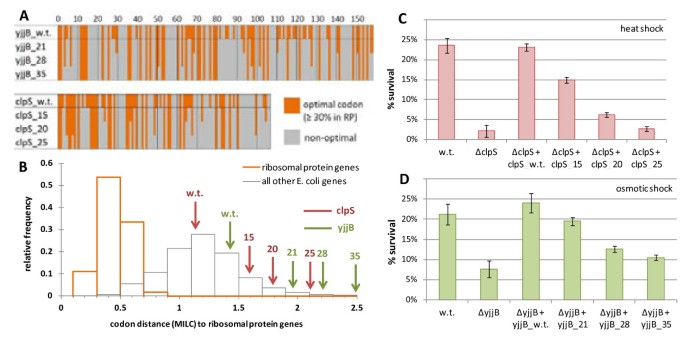

Phenotypic effects of introducing synonymous changes in the clpS and yjjBgenes
For each of the two selected E. coli genes, we designed three additional variants with synonymous changes: for clpS, 15, 20 and 25 optimal codons were replaced with non-optimal ones, and for yjjB, 21, 28, and 35 codons were changed. The number of changed codons was chosen to be proportional to the sequence length (clpS is 107 codons long and yjjB is 158 codons long). The optimality of a codon was defined as its frequency in the E. coli RP)genes, normalized to sum to 100% for each amino acid. All introduced changes had to reduce the optimality of the original codon by at least 30% below the original value, while not falling below 3% to avoid the extremely rare codons such as the AGG or AGA arginine codons (0.6% and 0% usage in E. coli RP). Therefore, with our gene variants, we aimed to incorporate a large number of moderate changes in codon optimality, rather than a small number of drastic changes, assuring a more even distribution of the codon optimality levels along the length of the gene. In the yjjB sequences (including wild-type sequence), we also abolished a HsdR site, AACGTTCCCGTGC, by changing CCC-GTG-C to CCC-GTA-C (a synonymous change, where one suboptimal valine codon was exchanged for another).
To control for stable secondary structures in the mRNA that may inhibit protein translation independently of the use of optimal codons, we used a script that in each step replaces five (for clpS) or seven (for yjjB) randomly chosen codons in the sequences with suboptimal ones (while obeying the rules described above), repeating the random selection 100 times, and selecting the variant with the predicted RNA folding energy profile most similar to the original gene. Then, another set of five or seven codons are replaced, again with 100 random samplings, keeping the least changed RNA folding profile, and so on. The RNA folding free energy profiles for the genes were calculated for the 42-nucleotide folding windows using the hybrid-ss-min program from the UNAFold 3.6 package , with default parameters (NA = RNA, t = 37, [Na+] = 1, [Mg++] = 0, maxloop = 30, prefilter = 2/2). The difference in RNA folding profile between the mutated and the original sequence was computed as the root mean square deviation of folding free energies for all 42-nt windows. All sequences are given in Additional file 20, and the RNA secondary structure folding free energy profiles are given in Additional file 14.
The clpS and yjjB deletion mutants were complemented with a pJ801 plasmid encoding either the wild-type gene, or the variants with introduced synonymous mutations described above. The plasmids with the appropriate inserts were purchased from DNA2.0 and bore a kanamycine resistance cassette, and the genes were under the control of a rhamnose-inducible promoter. Overnight cultures of E. coli strains were diluted 200 times in LB medium, supplemented with 1.5 μM rhamnose and grown for 2 to 3 hours to an OD of 0.2 to 0.3. The clpS mutants were exposed to heat shock (100 minutes at 56°C) and yjjB mutants to osmotic shock (1 hour at 1 M NaCl and 37°C) and survival measured as for the deletion mutants.
This work was supported by grants from the Spanish Ministry of Economy and Competitiveness (BFU2009-9618, BFU2008-00365 and ‘Centro de Excelencia Severo Ochoa 2013-2017’ SEV-2012-0208), an ERC Starting Grant, ERASysBio PLUS, AGAUR, the EMBO Young Investigator Program, and the EMBL-CRG Systems Biology Program. The work of FS was supported in part by Marie Curie Actions and by grant ICT-2013-612944 (MAESTRA). The experimental part of this work was carried out at and financed by the Mediterranean Institute for Life Sciences (MedILS). We are grateful to Ivan Matić for valuable discussions and to Miroslav Radman for feedback on the manuscript.
- Akashi H: Synonymous codon usage in Drosophila melanogaster: natural selection and translational accuracy. Genetics. 1994, 136: 927-935.PubMedPubMed CentralGoogle Scholar
- Bulmer M: The selection-mutation-drift theory of synonymous codon usage. Genetics. 1991, 129: 897-907.PubMedPubMed CentralGoogle Scholar
- Kanaya S, Yamada Y, Kudo Y, Ikemura T: Studies of codon usage and tRNA genes of 18 unicellular organisms and quantification of Bacillus subtilis tRNAs: gene expression level and species-specific diversity of codon usage based on multivariate analysis. Gene. 1999, 238: 143-155. 10.1016/S0378-1119(99)00225-5.PubMedView ArticleGoogle Scholar
- Sharp PM, Li WH: The Codon Adaptation Index–a measure of directional synonymous codon usage bias, and its potential applications. Nucleic Acids Res. 1987, 15: 1281-1295. 10.1093/nar/15.3.1281.PubMedPubMed CentralView ArticleGoogle Scholar
- Supek F, Vlahovicek K: Comparison of codon usage measures and their applicability in prediction of microbial gene expressivity. BMC Bioinformatics. 2005, 6: 182-10.1186/1471-2105-6-182.PubMedPubMed CentralView ArticleGoogle Scholar
- Welch M, Govindarajan S, Ness JE, Villalobos A, Gurney A, Minshull J, Gustafsson C: Design parameters to control synthetic gene expression in Escherichia coli. PLoS ONE. 2009, 4: e7002-10.1371/journal.pone.0007002.PubMedPubMed CentralView ArticleGoogle Scholar
- Supek F, Smuc T: On relevance of codon usage to expression of synthetic and natural genes in Escherichia coli. Genetics. 2010, 185: 1129-1134. 10.1534/genetics.110.115477.PubMedPubMed CentralView ArticleGoogle Scholar
- Rocha EPC: Codon usage bias from tRNA’s point of view: redundancy, specialization, and efficient decoding for translation optimization. Genome Res. 2004, 14: 2279-2286. 10.1101/gr.2896904.PubMedPubMed CentralView ArticleGoogle Scholar
- Supek F, Škunca N, Repar J, Vlahoviček K, Šmuc T: Translational selection is ubiquitous in prokaryotes. PLoS Genet. 2010, 6: e1001004-10.1371/journal.pgen.1001004.PubMedPubMed CentralView ArticleGoogle Scholar
- Hershberg R, Petrov DA: General rules for optimal codon choice. PLoS Genet. 2009, 5: e1000556-10.1371/journal.pgen.1000556.PubMedPubMed CentralView ArticleGoogle Scholar
- Drummond DA, Wilke CO: Mistranslation-induced protein misfolding as a dominant constraint on coding-sequence evolution. Cell. 2008, 134: 341-352. 10.1016/j.cell.2008.05.042.PubMedPubMed CentralView ArticleGoogle Scholar
- Von Mandach C, Merkl R: Genes optimized by evolution for accurate and fast translation encode in Archaea and Bacteria a broad and characteristic spectrum of protein functions. BMC Genomics. 2010, 11: 617-10.1186/1471-2164-11-617.PubMedPubMed CentralView ArticleGoogle Scholar
- Karlin S, Brocchieri L, Mrázek J, Kaiser D: Distinguishing features of δ-proteobacterial genomes. Proc Natl Acad Sci. 2006, 103: 11352-11357. 10.1073/pnas.0604311103.PubMedPubMed CentralView ArticleGoogle Scholar
- Carbone A: Computational prediction of genomic functional cores specific to different microbes. J Mol Evol. 2006, 63: 733-746. 10.1007/s00239-005-0250-9.PubMedView ArticleGoogle Scholar
- Karlin S, Brocchieri L, Campbell A, Cyert M, Mrázek J: Genomic and proteomic comparisons between bacterial and archaeal genomes and related comparisons with the yeast and fly genomes. Proc Natl Acad Sci USA. 2005, 102: 7309-7314. 10.1073/pnas.0502314102.PubMedPubMed CentralView ArticleGoogle Scholar
- Man O, Pilpel Y: Differential translation efficiency of orthologous genes is involved in phenotypic divergence of yeast species. Nat Genet. 2007, 39: 415-421. 10.1038/ng1967.PubMedView ArticleGoogle Scholar
- Grocock RJ, Sharp PM: Synonymous codon usage in Pseudomonas aeruginosa PA01. Gene. 2002, 289: 131-139. 10.1016/S0378-1119(02)00503-6.PubMedView ArticleGoogle Scholar
- Retchless AC, Lawrence JG: Quantification of codon selection for comparative bacterial genomics. BMC Genomics. 2011, 12: 374-10.1186/1471-2164-12-374.PubMedPubMed CentralView ArticleGoogle Scholar
- Knight RD, Freeland SJ, Landweber LF: A simple model based on mutation and selection explains trends in codon and amino-acid usage and GC composition within and across genomes. Genome Biol. 2001, 2: RESEARCH0010-PubMedPubMed CentralGoogle Scholar
- Chen SL, Lee W, Hottes AK, Shapiro L, McAdams HH: Codon usage between genomes is constrained by genome-wide mutational processes. Proc Natl Acad Sci USA. 2004, 101: 3480-3485. 10.1073/pnas.0307827100.PubMedPubMed CentralView ArticleGoogle Scholar
- Dos Reis M, Savva R, Wernisch L: Solving the riddle of codon usage preferences: a test for translational selection. Nucl Acids Res. 2004, 32: 5036-5044. 10.1093/nar/gkh834.PubMedView ArticleGoogle Scholar
- Sharp PM, Bailes E, Grocock RJ, Peden JF, Sockett RE: Variation in the strength of selected codon usage bias among bacteria. Nucleic Acids Res. 2005, 33: 1141-1153. 10.1093/nar/gki242.PubMedPubMed CentralView ArticleGoogle Scholar
- Carbone A, Képès F, Zinovyev A: Codon bias signatures, organization of microorganisms in codon space, and lifestyle. Mol Biol Evol. 2005, 22: 547-561.PubMedView ArticleGoogle Scholar
- Wagner A: Inferring lifestyle from gene expression patterns. Mol Biol Evol. 2000, 17: 1985-1987. 10.1093/oxfordjournals.molbev.a026299.PubMedView ArticleGoogle Scholar
- Kudla G, Murray AW, Tollervey D, Plotkin JB: Coding-sequence determinants of gene expression in Escherichia coli. Science. 2009, 324: 255-258. 10.1126/science.1170160.PubMedPubMed CentralView ArticleGoogle Scholar
- Tatusov RL, Fedorova ND, Jackson JD, Jacobs AR, Kiryutin B, Koonin EV, Krylov DM, Mazumder R, Mekhedov SL, Nikolskaya AN, Rao BS, Smirnov S, Sverdlov AV, Vasudevan S, Wolf YI, Yin JJ, Natale DA: The COG database: an updated version includes eukaryotes. BMC Bioinformatics. 2003, 4: 41-10.1186/1471-2105-4-41.PubMedPubMed CentralView ArticleGoogle Scholar
- Novoa EM, Pavon-Eternod M, Pan T, Ribas de Pouplana L: A role for tRNA modifications in genome structure and codon usage. Cell. 2012, 149: 202-213. 10.1016/j.cell.2012.01.050.PubMedView ArticleGoogle Scholar
- Saini A, Mapolelo DT, Chahal HK, Johnson MK, Outten FW: SufD and SufC ATPase activity are required for iron acquisition during in vivo Fe-S cluster formation on SufB. Biochemistry. 2010, 49: 9402-9412. 10.1021/bi1011546.PubMedPubMed CentralView ArticleGoogle Scholar
- Tokumoto U, Kitamura S, Fukuyama K, Takahashi Y: Interchangeability and distinct properties of bacterial Fe-S cluster assembly systems: functional replacement of the isc and suf operons in Escherichia coli with the nifSU-like operon from Helicobacter pylori. J Biochem. 2004, 136: 199-209. 10.1093/jb/mvh104.PubMedView ArticleGoogle Scholar
- Nachin L, El Hassouni M, Loiseau L, Expert D, Barras F, Nachin L, El Hassouni M, Loiseau L, Expert D, Barras F: SoxR-dependent response to oxidative stress and virulence of Erwinia chrysanthemi: the key role of SufC, an orphan ABC ATPase, SoxR-dependent response to oxidative stress and virulence of Erwinia chrysanthemi: the key role of SufC, an orphan ABC ATPase. Mol Microbiol, Mol Microbiol. 2001, 39: 960-972. 10.1046/j.1365-2958.2001.02288.x.PubMedView ArticleGoogle Scholar
- Loughlin MF, Arandhara V, Okolie C, Aldsworth TG, Jenks PJ: Helicobacter pylori mutants defective in the clpP ATP-dependant protease and the chaperone clpA display reduced macrophage and murine survival. Microb Pathog. 2009, 46: 53-57. 10.1016/j.micpath.2008.10.004.PubMedView ArticleGoogle Scholar
- Ekaza E, Teyssier J, Ouahrani-Bettache S, Liautard J-P, Köhler S: Characterization of Brucella suis clpB and clpAB mutants and participation of the genes in stress responses. J Bacteriol. 2001, 183: 2677-2681. 10.1128/JB.183.8.2677-2681.2001.PubMedPubMed CentralView ArticleGoogle Scholar
- Chaturvedi R, Bansal K, Narayana Y, Kapoor N, Sukumar N, Togarsimalemath SK, Chandra N, Mishra S, Ajitkumar P, Joshi B, Katoch VM, Patil SA, Balaji KN: The multifunctional PE_PGRS11 protein from Mycobacterium tuberculosis plays a role in regulating resistance to oxidative stress. J Biol Chem. 2010, 285: 30389-30403. 10.1074/jbc.M110.135251.PubMedPubMed CentralView ArticleGoogle Scholar
- Lee SM, Koh H-J, Park D-C, Song BJ, Huh T-L, Park J-W: Cytosolic NADP + -dependent isocitrate dehydrogenase status modulates oxidative damage to cells. Free Radic Biol Med. 2002, 32: 1185-1196. 10.1016/S0891-5849(02)00815-8.PubMedView ArticleGoogle Scholar
- Kondoh H, Lleonart ME, Gil J, Wang J, Degan P, Peters G, Martinez D, Carnero A, Beach D: Glycolytic enzymes can modulate cellular life span. Cancer Res. 2005, 65: 177-185.PubMedGoogle Scholar
- Cunningham L, Georgellis D, Green J, Guest JR: Co-regulation of lipoamide dehydrogenase and 2-oxoglutarate dehydrogenase synthesis in Escherichia coli: characterisation of an ArcA binding site in the lpd promoter. FEMS Microbiol Lett. 1998, 169: 403-408. 10.1111/j.1574-6968.1998.tb13347.x.PubMedView ArticleGoogle Scholar
- Brown SD, Thompson MR, VerBerkmoes NC, Chourey K, Shah M, Zhou J, Hettich RL, Thompson DK: Molecular dynamics of the Shewanella oneidensis response to chromate stress. Mol Cell Proteomics. 2006, 5: 1054-1071. 10.1074/mcp.M500394-MCP200.PubMedView ArticleGoogle Scholar
- Pinto R, Tang QX, Britton WJ, Leyh TS, Triccas JA: The Mycobacterium tuberculosis cysD and cysNC genes form a stress-induced operon that encodes a tri-functional sulfate-activating complex. Microbiology. 2004, 150: 1681-1686. 10.1099/mic.0.26894-0.PubMedView ArticleGoogle Scholar
- Szklarczyk D, Franceschini A, Kuhn M, Simonovic M, Roth A, Minguez P, Doerks T, Stark M, Muller J, Bork P, Jensen LJ, von Mering C: The STRING database in 2011: functional interaction networks of proteins, globally integrated and scored. Nucleic Acids Res. 2011, 39: D561-D568. 10.1093/nar/gkq973.PubMedPubMed CentralView ArticleGoogle Scholar
- Blank L, Green J, Guest JR: AcnC of Escherichia coli is a 2-methylcitrate dehydratase (PrpD) that can use citrate and isocitrate as substrates. Microbiology. 2002, 148: 133-146.PubMedView ArticleGoogle Scholar
- Tang Y, Quail MA, Artymiuk PJ, Guest JR, Green J: Escherichia coli aconitases and oxidative stress: post-transcriptional regulation of sodA expression. Microbiology. 2002, 148: 1027-1037.PubMedView ArticleGoogle Scholar
- Ritz D, Beckwith J: Roles of thiol-redox pathways in bacteria. Annu Rev Microbiol. 2001, 55: 21-48. 10.1146/annurev.micro.55.1.21.PubMedView ArticleGoogle Scholar
- Daly MJ, Gaidamakova EK, Matrosova VY, Vasilenko A, Zhai M, Leapman RD, Lai B, Ravel B, Li S-MW, Kemner KM, Fredrickson JK: Protein oxidation implicated as the primary determinant of bacterial radioresistance. PLoS Biol. 2007, 5: e92-10.1371/journal.pbio.0050092.PubMedPubMed CentralView ArticleGoogle Scholar
- Daly MJ, Gaidamakova EK, Matrosova VY, Vasilenko A, Zhai M, Venkateswaran A, Hess M, Omelchenko MV, Kostandarithes HM, Makarova KS, Wackett LP, Fredrickson JK, Ghosal D: Accumulation of Mn(II) in deinococcus radiodurans facilitates gamma-radiation resistance. Science. 2004, 306: 1025-1028. 10.1126/science.1103185.PubMedView ArticleGoogle Scholar
- Singh R, Mailloux RJ, Puiseux-Dao S, Appanna VD: Oxidative stress evokes a metabolic adaptation that favors increased NADPH synthesis and decreased NADH production in Pseudomonas fluorescens. J Bacteriol. 2007, 189: 6665-6675. 10.1128/JB.00555-07.PubMedPubMed CentralView ArticleGoogle Scholar
- Sandoval JM, Arenas FA, Vásquez CC: Glucose-6-phosphate dehydrogenase protects Escherichia coli from tellurite-mediated oxidative stress. PLoS ONE. 2011, 6: e25573-10.1371/journal.pone.0025573.PubMedPubMed CentralView ArticleGoogle Scholar
- Grose JH, Joss L, Velick SF, Roth JR: Evidence that feedback inhibition of NAD kinase controls responses to oxidative stress. Proc Natl Acad Sci USA. 2006, 103: 7601-7606. 10.1073/pnas.0602494103.PubMedPubMed CentralView ArticleGoogle Scholar
- Dougan DA, Reid BG, Horwich AL, Bukau B: ClpS, a substrate modulator of the ClpAP machine. Mol Cell. 2002, 9: 673-683. 10.1016/S1097-2765(02)00485-9.PubMedView ArticleGoogle Scholar
- du Plessis L, Škunca N, Dessimoz C: The what, where, how and why of gene ontology—a primer for bioinformaticians. Brief Bioinform. 2011, 12: 723-735. 10.1093/bib/bbr002.PubMedPubMed CentralView ArticleGoogle Scholar
- Pellegrini M, Marcotte EM, Thompson MJ, Eisenberg D, Yeates TO: Assigning protein functions by comparative genome analysis: protein phylogenetic profiles. Proc Natl Acad Sci USA. 1999, 96: 4285-4288. 10.1073/pnas.96.8.4285.PubMedPubMed CentralView ArticleGoogle Scholar
- Korbel JO, Doerks T, Jensen LJ, Perez-Iratxeta C, Kaczanowski S, Hooper SD, Andrade MA, Bork P: Systematic association of genes to phenotypes by genome and literature mining. PLoS Biol. 2005, 3: e134-10.1371/journal.pbio.0030134.PubMedPubMed CentralView ArticleGoogle Scholar
- Koonin EV, Wolf YI: Genomics of Bacteria and Archaea: the emerging dynamic view of the prokaryotic world. Nucleic Acids Res. 2008, 36: 6688-6719. 10.1093/nar/gkn668.PubMedPubMed CentralView ArticleGoogle Scholar
- Škunca N, Bošnjak M, Kriško A, Panov P, Džeroski S, Šmuc T, Supek F: Phyletic profiling with cliques of orthologs is enhanced by signatures of paralogy relationships. PLoS Comput Biol. 2013, 9: e1002852-10.1371/journal.pcbi.1002852.PubMedPubMed CentralView ArticleGoogle Scholar
- Retchless AC, Lawrence JG: Ecological adaptation in bacteria: speciation driven by codon selection. Mol Biol Evol. 2012, 29: 3669-3683. 10.1093/molbev/mss171.PubMedPubMed CentralView ArticleGoogle Scholar
- Botzman M, Margalit H: Variation in global codon usage bias among prokaryotic organisms is associated with their lifestyles. Genome Biol. 2011, 12: R109-10.1186/gb-2011-12-10-r109.PubMedPubMed CentralView ArticleGoogle Scholar
- Gabaldón T: Comparative genomics-based prediction of protein function. Methods Mol Biol. 2008, 439: 387-401. 10.1007/978-1-59745-188-8_26.PubMedView ArticleGoogle Scholar
- Rui B, Shen T, Zhou H, Liu J, Chen J, Pan X, Liu H, Wu J, Zheng H, Shi Y: A systematic investigation of Escherichia coli central carbon metabolism in response to superoxide stress. BMC Syst Biol. 2010, 4: 122-10.1186/1752-0509-4-122.PubMedPubMed CentralView ArticleGoogle Scholar
- Singh R, Lemire J, Mailloux RJ, Appanna VD: A novel strategy involved anti-oxidative defense: the conversion of NADH into NADPH by a metabolic network. PLoS ONE. 2008, 3: e2682-10.1371/journal.pone.0002682.PubMedPubMed CentralView ArticleGoogle Scholar
- NCBI Entrez Genome FTP site. ftp://ftp.ncbi.nih.gov/genomes/BacteriaGoogle Scholar
- Breiman L: Random forests. Mach Learn. 2001, 45: 5-32. 10.1023/A:1010933404324.View ArticleGoogle Scholar
- NCBI Entrez Microbial Genome Properties: http://www.ncbi.nlm.nih.gov/genome/browse/,
- Fawcett T: An introduction to ROC analysis. Pattern Recogn Lett. 2006, 27: 861-874. 10.1016/j.patrec.2005.10.010.View ArticleGoogle Scholar
- The FastRandomForest Weka Extension: http://fast-random-forest.googlecode.com/,
- Witten IH, Frank E: Practical Machine Learning Tools and Techniques, Second Edition. 2005, San Francisco: Morgan Kaufmann, 2Google Scholar
- Kitagawa M, Ara T, Arifuzzaman M, Ioka-Nakamichi T, Inamoto E, Toyonaga H, Mori H: Complete Set of ORF clones of Escherichia coli ASKA library (a complete set of E. coli K-12 ORF archive): unique resources for biological research. DNA Res. 2006, 12: 291-299. 10.1093/dnares/dsi012.View ArticleGoogle Scholar
- Zhang W, O’Connor K, Wang DIC, Li Z: Bioreduction with efficient recycling of NADPH by coupled permeabilized microorganisms. Appl Environ Microbiol. 2009, 75: 687-694. 10.1128/AEM.01506-08.PubMedPubMed CentralView ArticleGoogle Scholar
- Rad AM, Janic B, Iskander ASM, Soltanian-Zadeh H, Arbab AS: Measurement of quantity of iron in magnetically labeled cells: comparison among different UV/VIS spectrometric methods. Biotechniques. 2007, 43: 627-628. 10.2144/000112599. 630, 632 passimPubMedView ArticleGoogle Scholar
- Markham NR, Zuker M: UNAFold: software for nucleic acid folding and hybridization. Methods Mol Biol. 2008, 453: 3-31. 10.1007/978-1-60327-429-6_1.PubMedView ArticleGoogle Scholar
- Shultzaberger RK, Bucheimer RE, Rudd KE, Schneider TD: Anatomy of Escherichia coli ribosome binding sites. J Mol Biol. 2001, 313: 215-228. 10.1006/jmbi.2001.5040.PubMedView ArticleGoogle Scholar
- Karlin S, Mrazek J: Predicted highly expressed genes of diverse prokaryotic genomes. J Bacteriol. 2000, 182: 5238-5250. 10.1128/JB.182.18.5238-5250.2000.PubMedPubMed CentralView ArticleGoogle Scholar
