Figure 5 | Genome Biology

Figure 5

From: BitPhylogeny: a probabilistic framework for reconstructing intra-tumor phylogenies

Figure 5

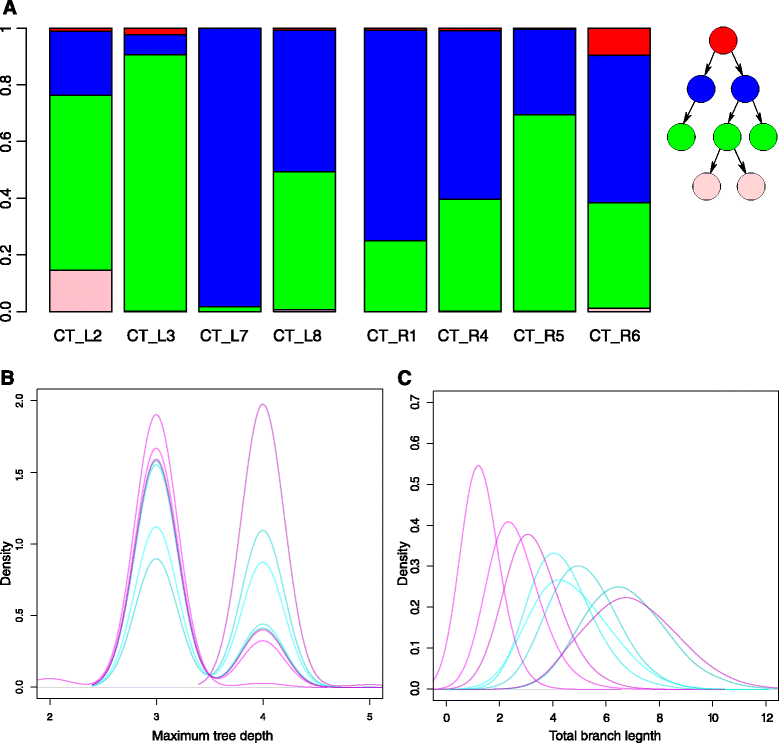

Analysis of CT samples. (A) Level-wise mass distribution of CT samples. For each tree, the bars show the level sums of the mixture model masses for all eight samples of the CT tumor. The red bars correspond to the posterior means of the root masses. The blue, green and pink bars correspond to the means of the sums of the second, third and fourth tree levels, respectively. (B) Maximum depth of trees of the individual samples. Turquoise densities are from the right side of the tumor and the pink ones are from the left side. Trees from the left side of the tumor have peaked posterior densities at a depth of either 3 or 4, while the posterior densities from the right side are less peaked. (C) Total branch length of trees of individual samples. The trees from the left side, which peak at depth 3 in (B), have shorter total branch lengths than the tree that peaks at depth 4 or the trees from the right side of the tumor.
